VES-VNG5.8

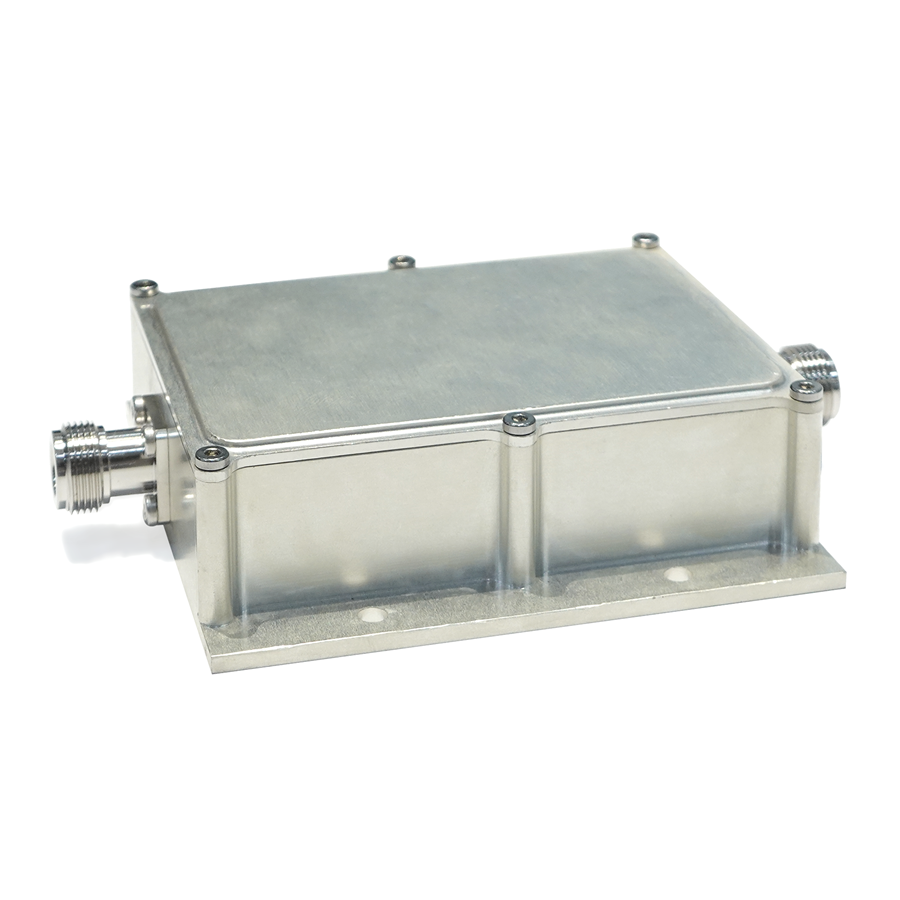

Cavity Bandpass Filter

Features

Description

Electrical Specifications

Parameter

unit

Specification

remark

Pass Band Frequency

MHz

5700 ~ 5900



Center Frequency

MHz

5800



Bandwidth

MHz

200



Pass Band Insertion Loss

dB

0.5



Pass Band Ripple

dB

0.2



Pass Band Return Loss

dB

17



Rejection

dB

65 Min. @ DC - 5365 MHz



Power handling

W

50



Operating Temperature

-45 to +85



Storage Temperature

-55 to +95



Shock

G

20G. 11ms



Vibration

G

20G. 5 to 200Hz



In / Out Impedance

????

50



Water Resistance

IP67



Document

No.

Name

Type

1

Datasheet

PDF
