VES-VNG2.4

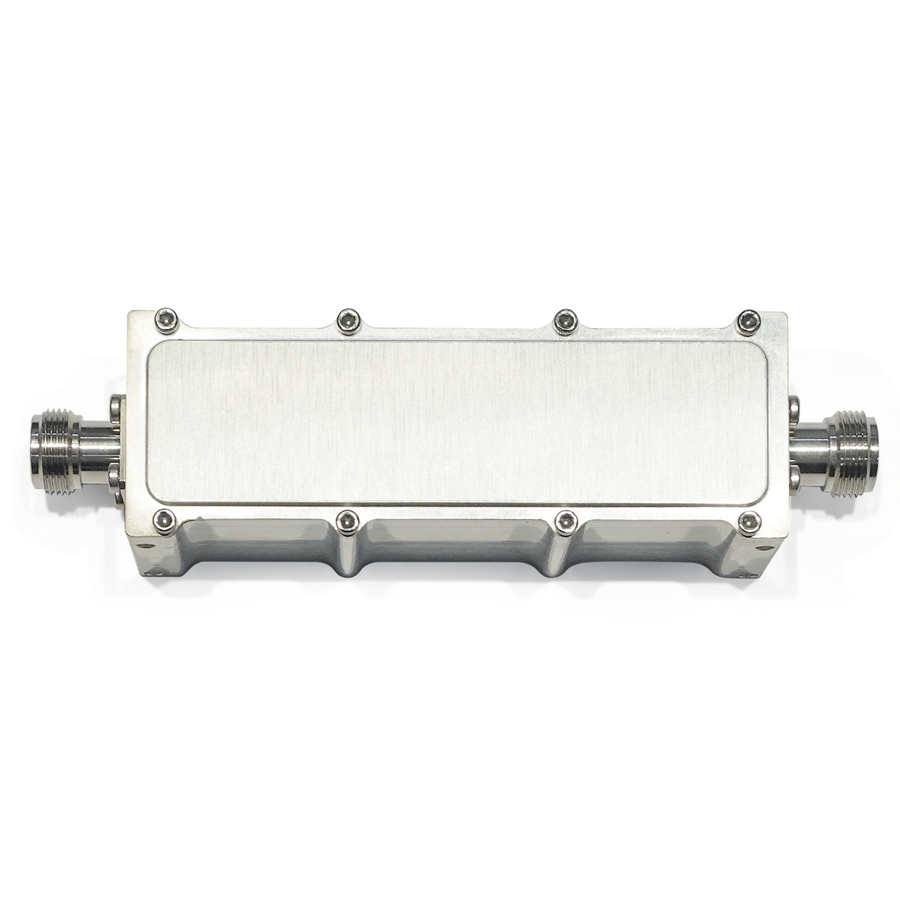

Cavity Bandpass Filter

Features

Description

Electrical Specifications at 25°C

Parameter

unit

Specification

remark

Pass Band Frequency

MHz

2400 ~ 2500

Center Frequency

MHz

2450

Bandwidth

MHz

100

Pass Band Insertion Loss

dB

0.5

Pass Band Ripple

dB

0.2

Pass Band Return Loss

dB

17

Rejection

dB

33 Min. @ DC - 2250 MHz

33 Min. @ 2600 - 3000 MHz

Power handling

W

40

Operating Temperature

-30 to +70

Storage Temperature

-55 to +95

Shock

G

20G. 11ms

Vibration

G

20G. 5 to 200Hz

In / Out Impedance

????

50

Water Resistance

IP67
