VES-VNG9.3

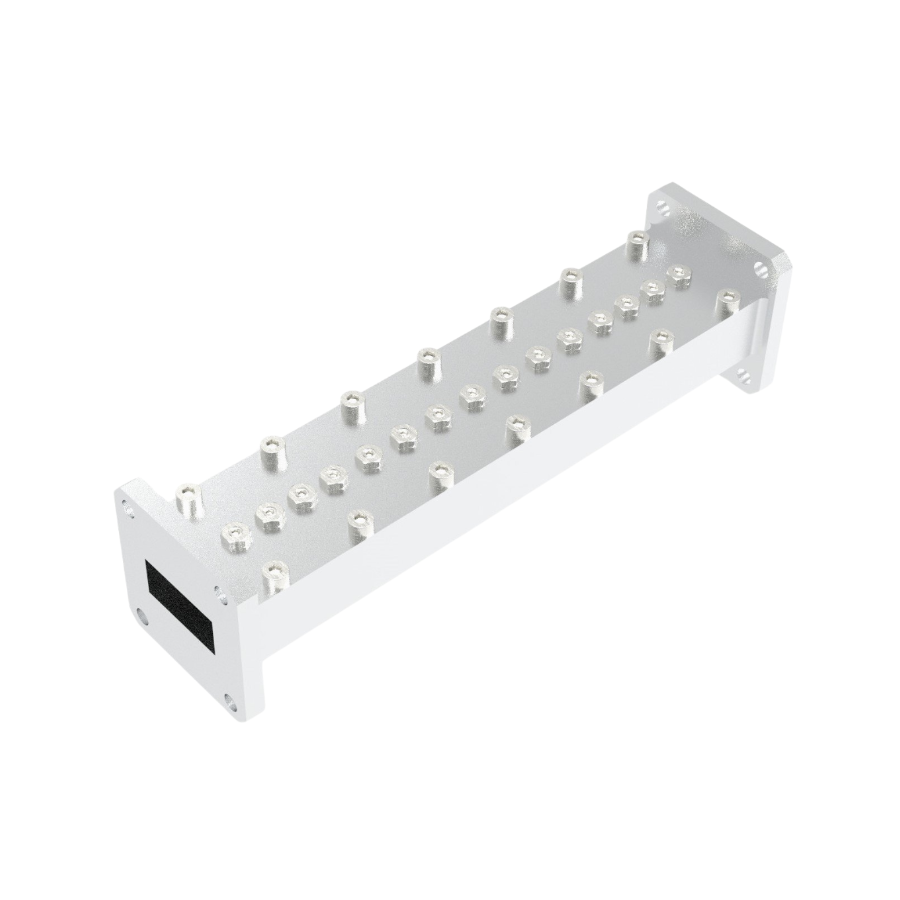

WR-90 Waveguide Filter Pass Band 9100 - 9650 MHz

Features

- Passband: Band Pass

- Passband Frequency Range: 9100 – 9650 MHz

- Waveguide Interface: WR-90

- Flange: FBP100

- Material: Aluminum

- Size [mm]: 160x41.4x41.4

Description

Electrical Specifications at 25°C

Parameter

Min.

Typ.

Max.

Unit

Passband Frequency Range

9100

-

9650

MHz

Passband Center Frequency

-

9375

-

MHz

Insertion Loss

0.6

dB

VSWR

1.3

:1

Rejection at 8650 MHz

40

dB

Rejection at 10150 MHz

30

17

dB
