VES-VNM-VUL

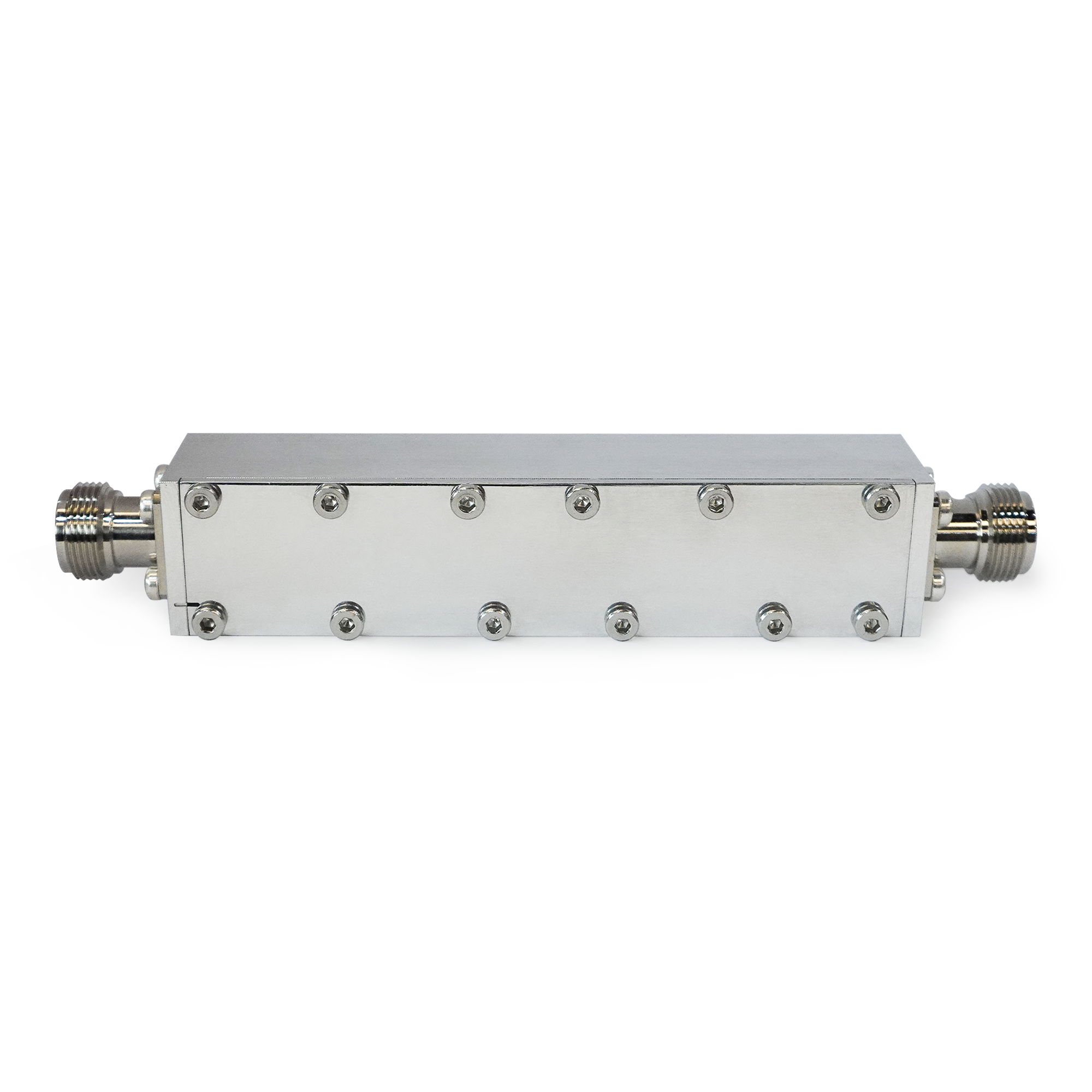

Low Pass Filter

Features

Connector Type - Female input and Female output
Dimensions mm 120*25.4*25.4
Weight KG 0.2

Description

Electrical Specifications

Pass Band Frequency: DC ~ 100 MHz


Pass Band Insertion Loss: 0.5 dB max


Pass Band Return Loss: 17 dB min

Rejection: 100 dB Min. @ 200-800 MHz


Power handling: 200 W


In/Out Impedance: 50 Ω


Operating Temperature: -45 to +85°C


Storage Temperature: -55 to +95°C


Shock: 10G, 11ms


Vibration: 10G, 5 to 200Hz
