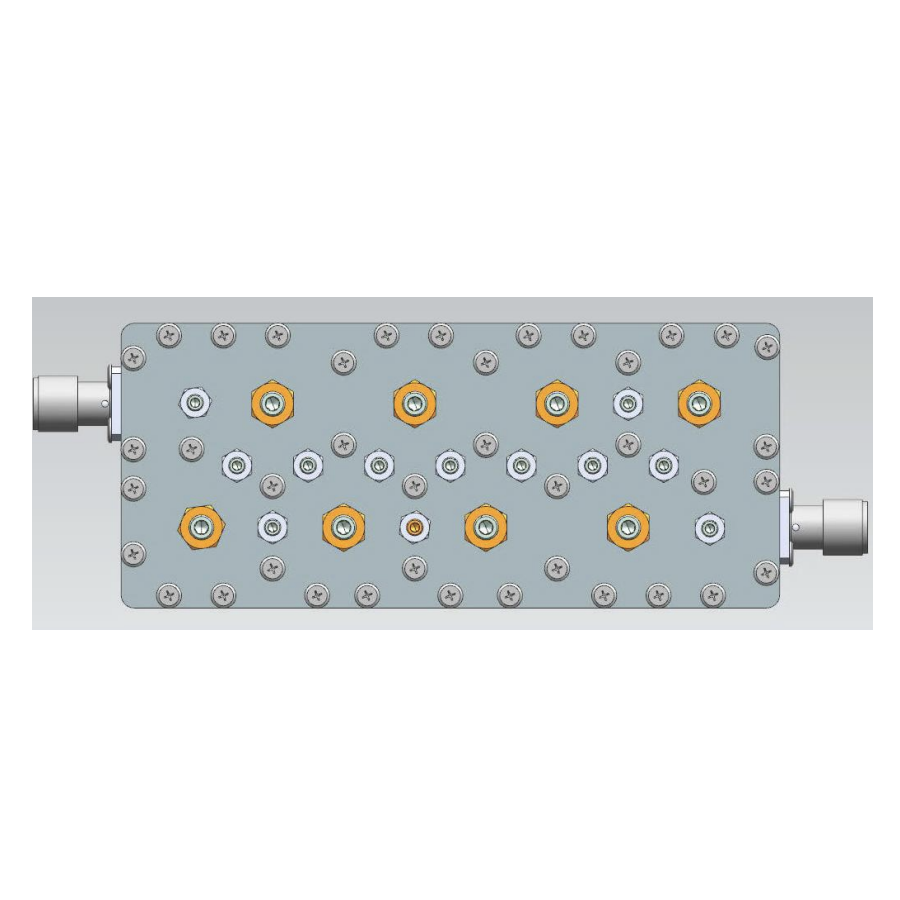

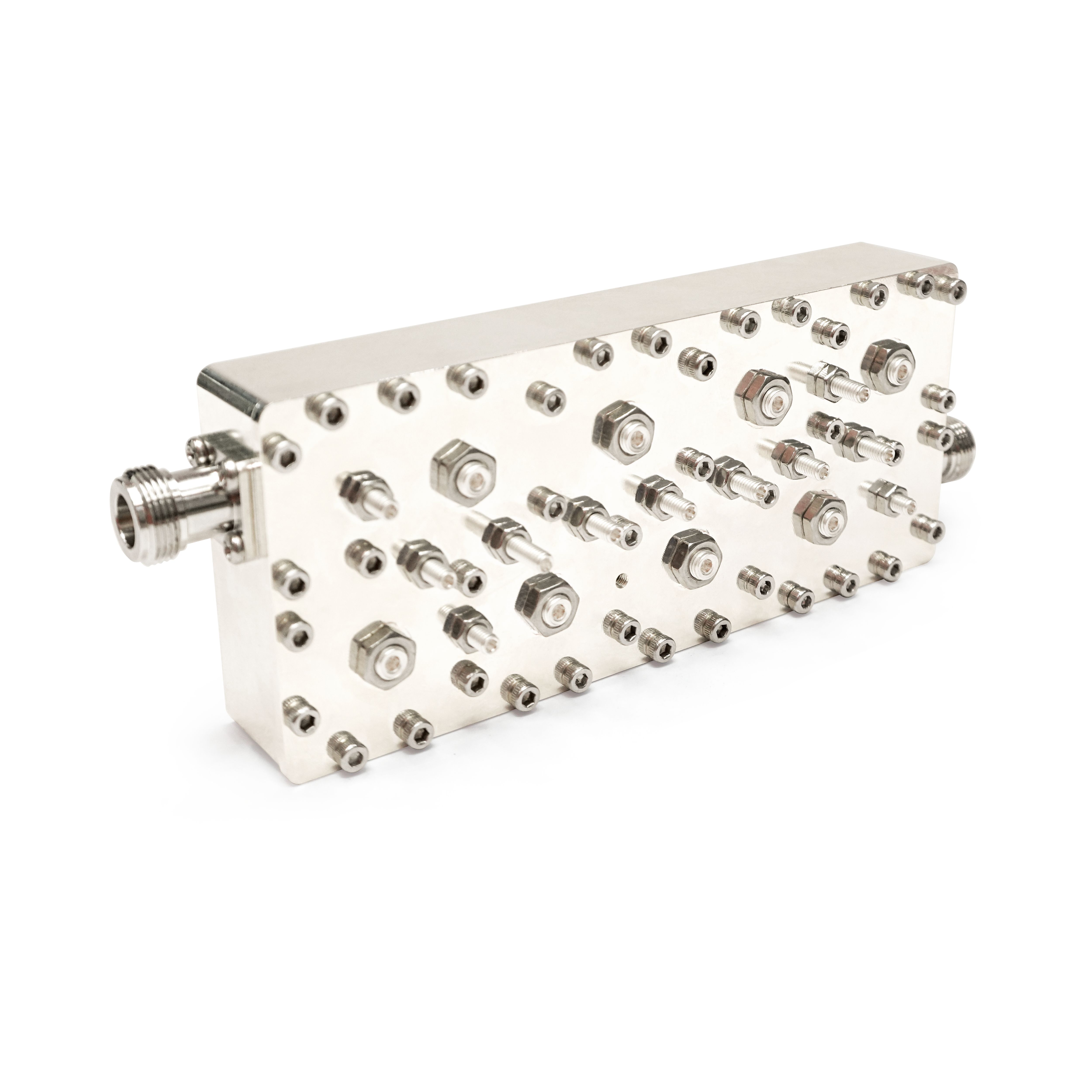

VES-FIL-1400

Pass Band 1350 - 1400 MHz

Features

- Passband: Band Pass
- Passband Frequency Range: 1350 – 1400 MHz
- Connector: N type
- Material: Aluminum
- Size (mm): 160x70x30
- Weight (g): 350

Description

Electrical Specifications at - 45°C to +90°C

Description

Min

Typ

Max

Unit

Passband Frequency Range

3700

-

1400

MHz

Passband Center Frequency

-

1375

-

MHz

Insertion Loss



1.6



dB

VSWR



1.3

:1

Rejection from 100-1300MHz



-55

dB

Rejection from 1300-1332MHz



-45

dB

Rejection from 1420-4000MHz



-65



Power handling

1000

W

impedance

50

Ohm
