VES-FIL-2440.7

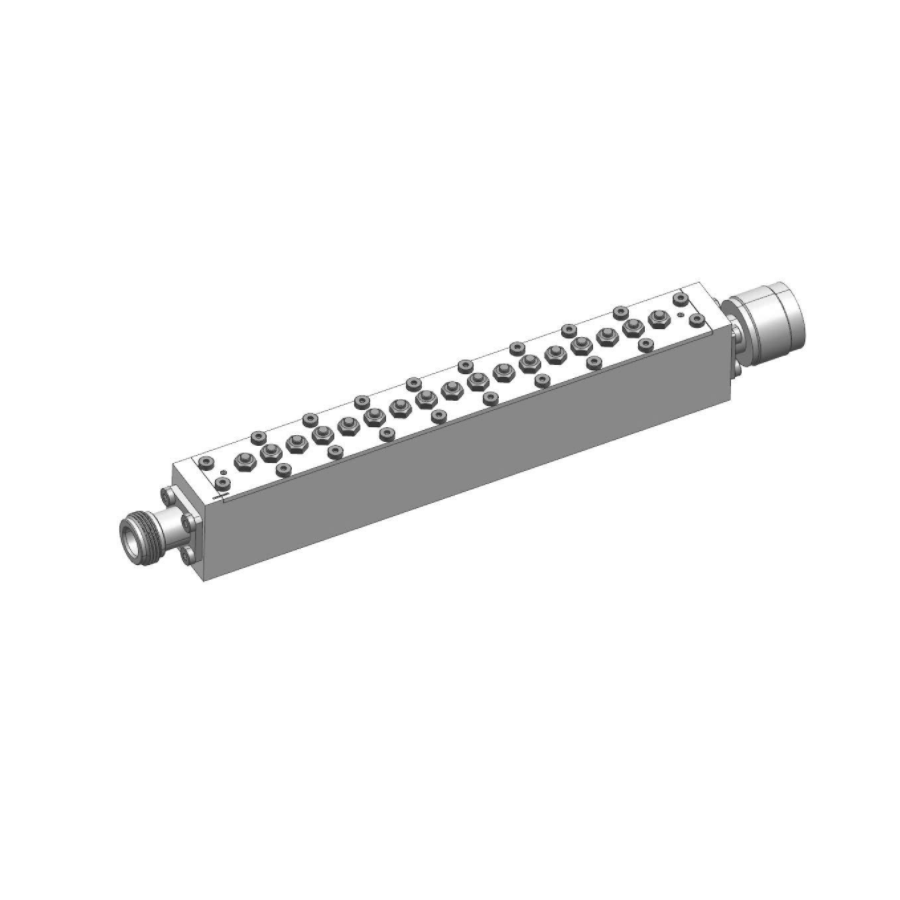

Cavity Bandpass Filter

Features

- Pass Band Frequency (MHz): 2400.7 ~ 2480.7
- Center Frequency (MHz): 2440.7
- Bandwidth (MHz): 80
- Pass Band Insertion Loss (dB): 1.9
- Pass Band Ripple (dB): 0.2
- Pass Band Return Loss (dB): 17

Description

Electrical Specifications

Parameter

unit

Specification

remark

Pass Band Frequency

MHz

2400.7 ~ 2480.7

Center Frequency

MHz

2440.7

Bandwidth

MHz

80

Pass Band Insertion Loss

dB

1.9

Pass Band Ripple

dB

0.2

Pass Band Return Loss

dB

17

Rejection

dB

55 Min. @2360.7 MHz

55 Min. @2520.7 MH

Power handling

W

50

Operating Temperature

-20 to +70

Storage Temperature

-55 to +95

Shock

G

20G. 11ms

Vibration

G

20G. 5 to 200Hz

In / Out Impedance

????

50

Mounting Method

-

Threaded Mouting

Connector Type

-

Female input and male output

Dimensions

mm

171*29.5*20

Weight

KG

0.25

Surface finish

-

Black Paint
