VES-VNM-VUH

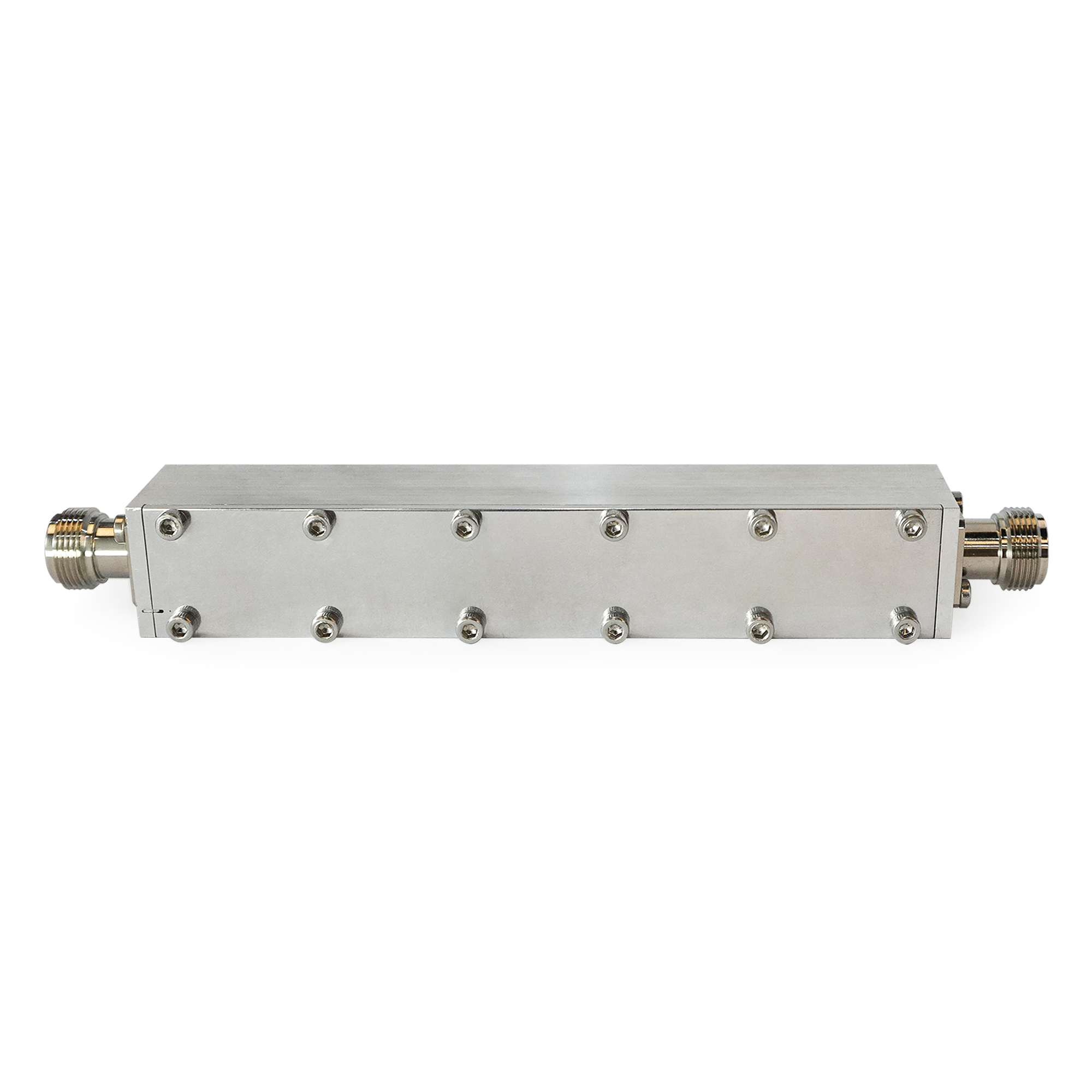

Low Pass Filter

Features

Connector Type - Female input and Female output
Dimensions mm 152.4*25.4*25.4
Weight KG 0.2

Description

Electrical Specifications

Parameter

unit

Specification

remark

Pass Band Frequency

MHz

DC ~ 175

Pass Band Insertion Loss

dB

0.5 max

Pass Band Return Loss

dB

16 min

Rejection

dB

60 Min. @ 290 - 2000 MHz

Power handling

W

200

Operating Temperature

-45 to + 85

Storage Temperature

-55 to + 95

Power handling

W

75

Shock

G

20G. 11ms

Vibration

G

10G. 10 to 2000Hz

Relative Humidity

%

0-95

In / Out Impedance

Ω

50
