VES-WHB-54565

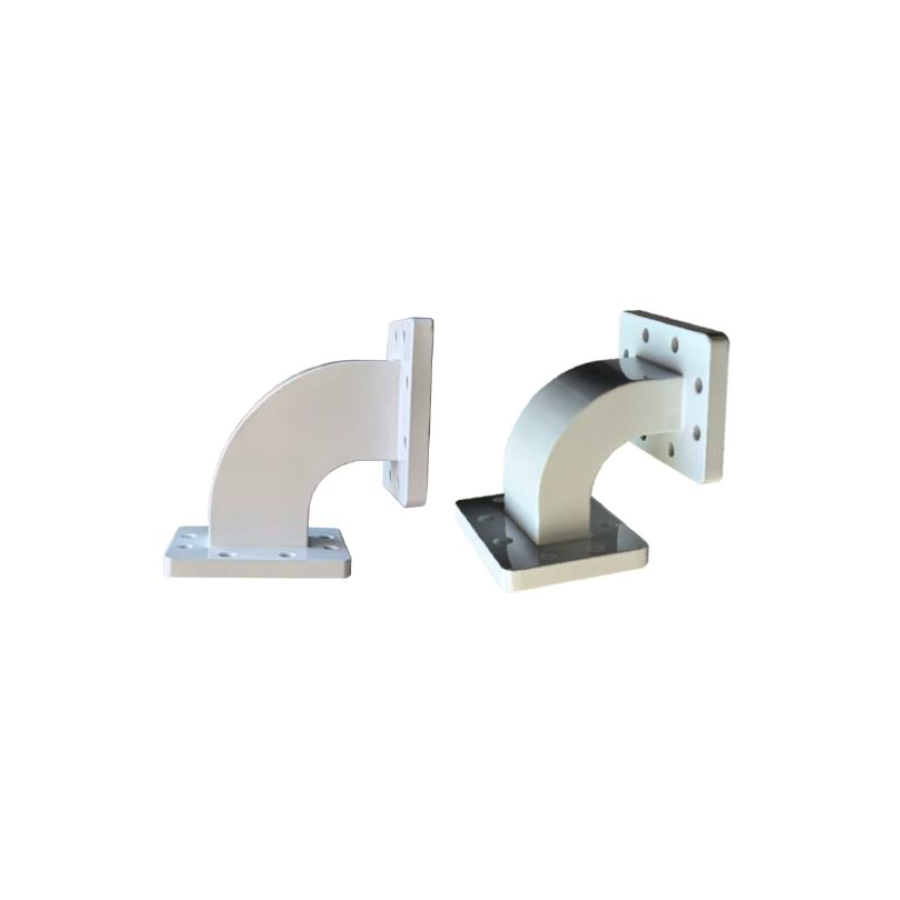

E/H Bend Waveguide, WR187, 50Ω, 5450-5650 MHz

Features

- Waveguide Type: WR187

- Flange Type: FDM48/CPR187G (Grooved)

- Material: Aluminum

- Inside finish: Chromate conversion

- Outside finish: Anticorrosion Grey paint

- Operating temperature: -40°C ~+75°C

- Storage Temperature: -55°C ~+85°C

Description

Mechanical Specifications

Waveguide Type

WR187

Flange Type

FDM48/CPR187G (Grooved)

Material

Aluminum

Inside finish

Chromate conversion

Outside finish

Anticorrosion Grey paint

Operating temperature

-40°C ~+75°C

Storage Temperature

-55°C ~+85°C

Electrical Specifications

Frequency Range

5.45 -5.65 GHz

VSWR (Max)

1.15

Insertion Loss (Max)

0.05 dB

Power Handling

0.5KW (CW)

5KW (Peak power)
