VES-MBW-WR187

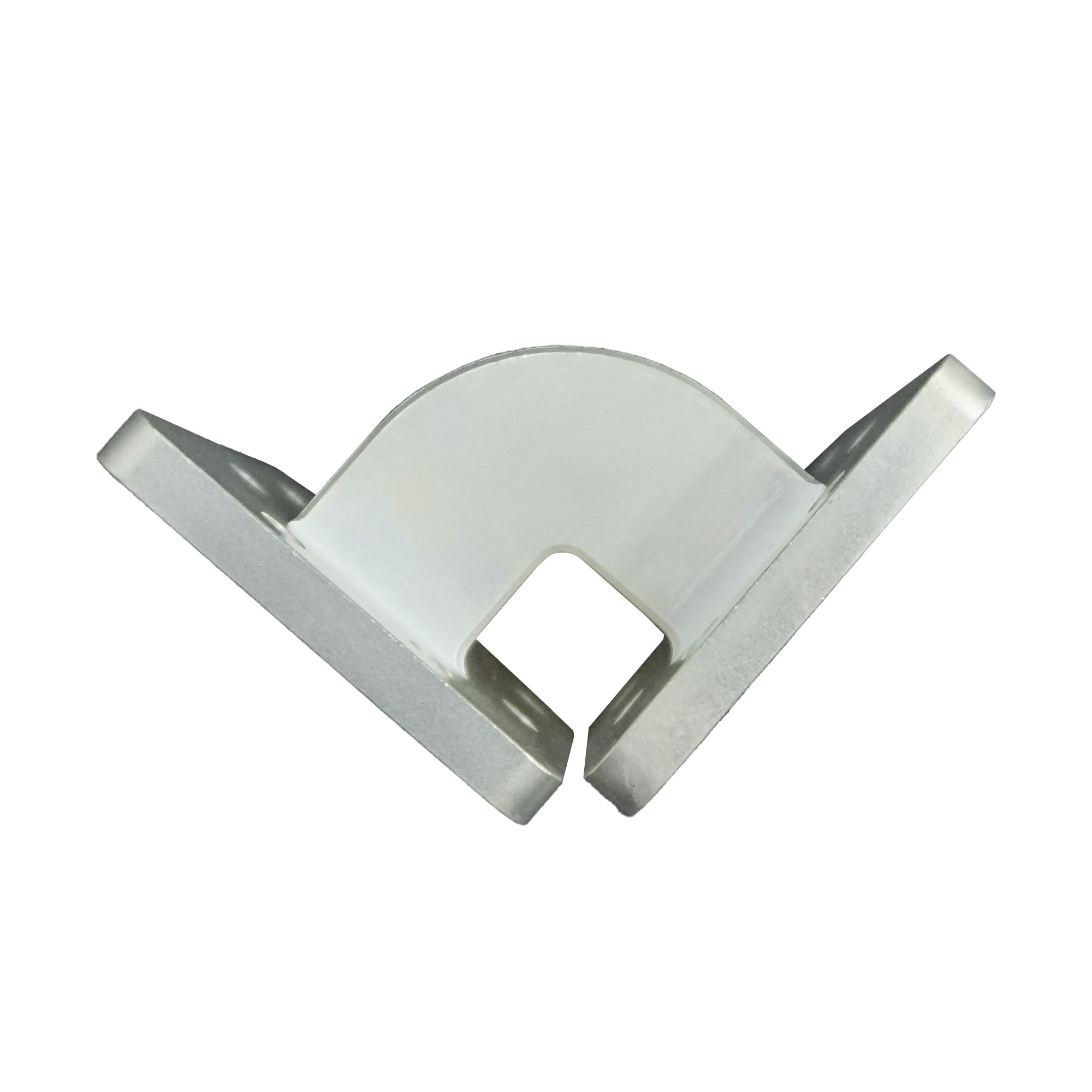

Miter bend waveguide

Features

- Passband: Band Pass

- Passband Frequency Range: 3950 – 5850 MHz

- connector: WR187

- Material: Aluminum

- Size [mm]: 71,75x71,75x88,9

- Weight[g] : 200

Description

Electrical Specifications at- 40°C to +85°C

Description

Min.

Typ.

Max.

Unit

Passband Frequency Range

3950

-

5850

MHz

Insertion Loss

0.2

dB

VSWR

1.3

:1

Power handling

100

kW

size

47.55x 22.15

mm
