VES-WAS-54565

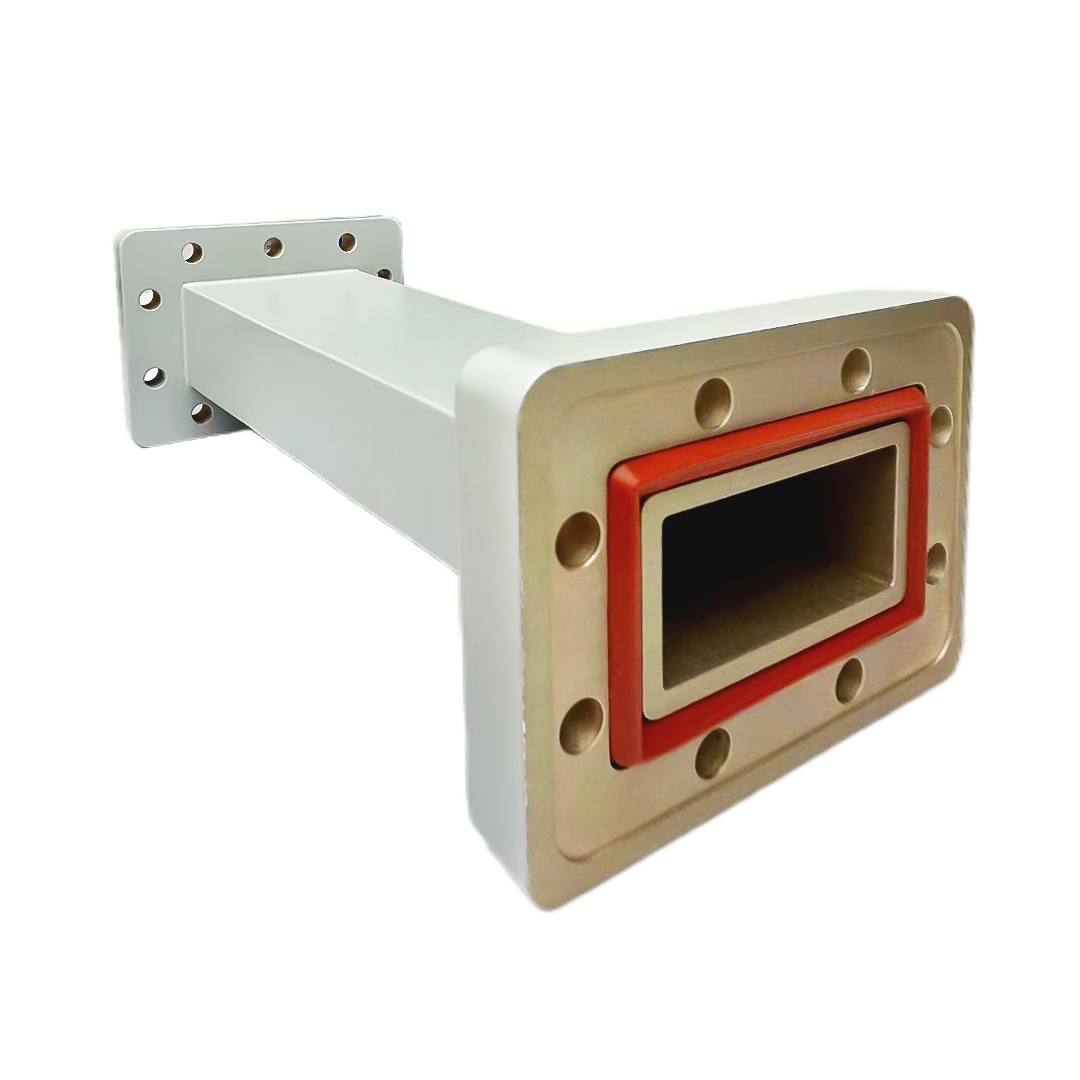

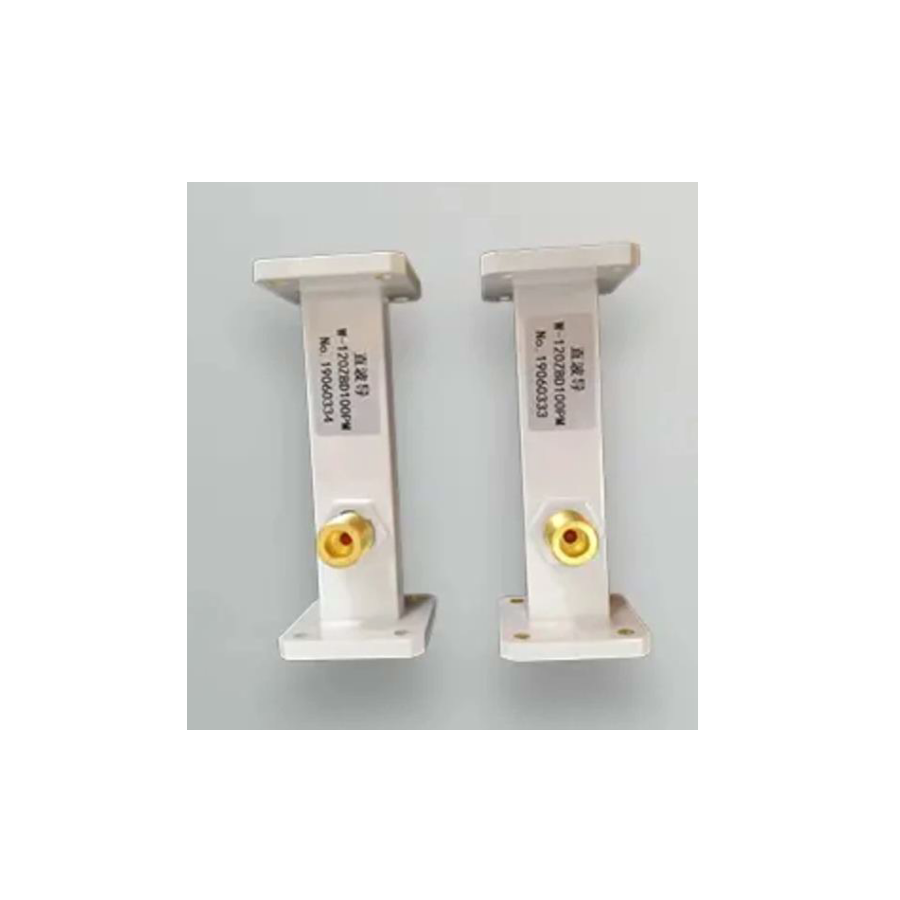

Straight Waveguide, WR187, 50Ω, 5450-5650 MHz

Features

- Low Insertion Loss, 0.05 dB typ.

- Excellent Frequency Selectivity

- Low VSWR, 1.15:1 Max.

- Broad Power Handling Capability

- Durability and Reliability

Description

Electrical Specifications at 25˚ C

Parameter

Specification

Unit

Electrical Specifications

Frequency Range

5450-5650

MHz

VSWR (Max)

1.15

:1

Insertion Loss (Max)

0.05 dB



Power Handling (Design Guarantee)

500 W (CW) 5KW (Peak power)

W

Operation temperature

-40~ +70 °C

Storage Temperature

-55~+85

Mechanical Specifications

Parameter

Specification

Waveguide Type

WR187

Flange Type

FDM48/CPR187G (Grooved)

Material

Aluminum

Inside finish

Chromate conversion

Outside finish

Anticorrosion Grey paint
