VES-FLC-54565

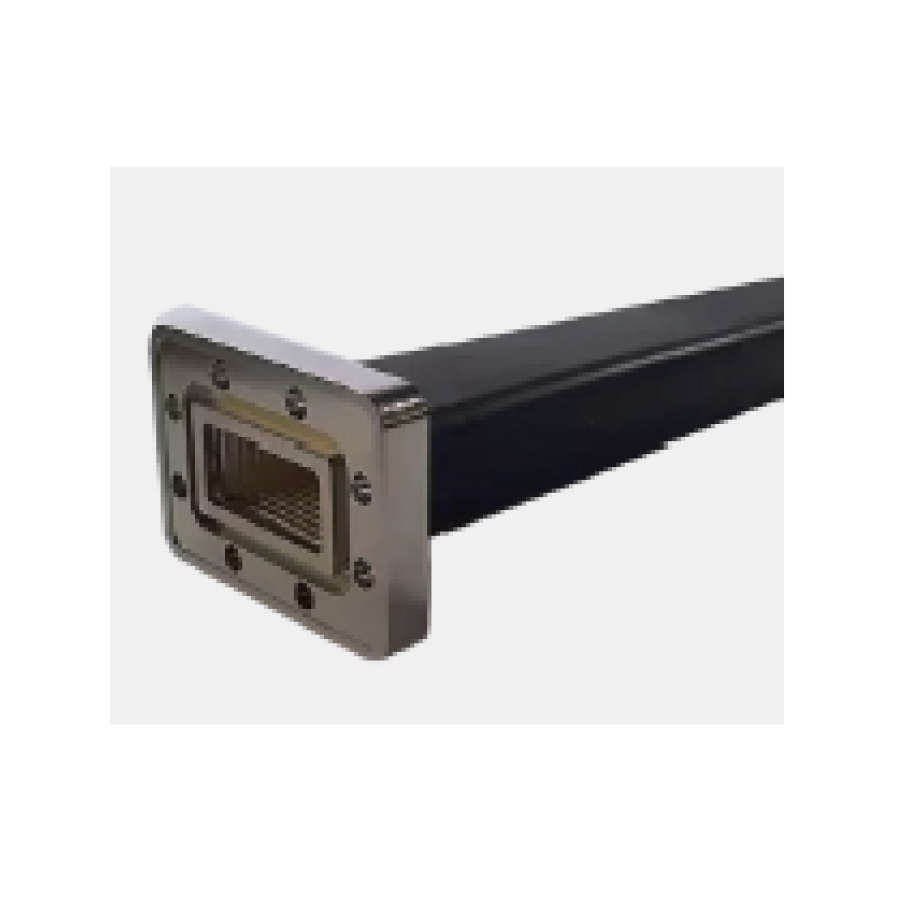

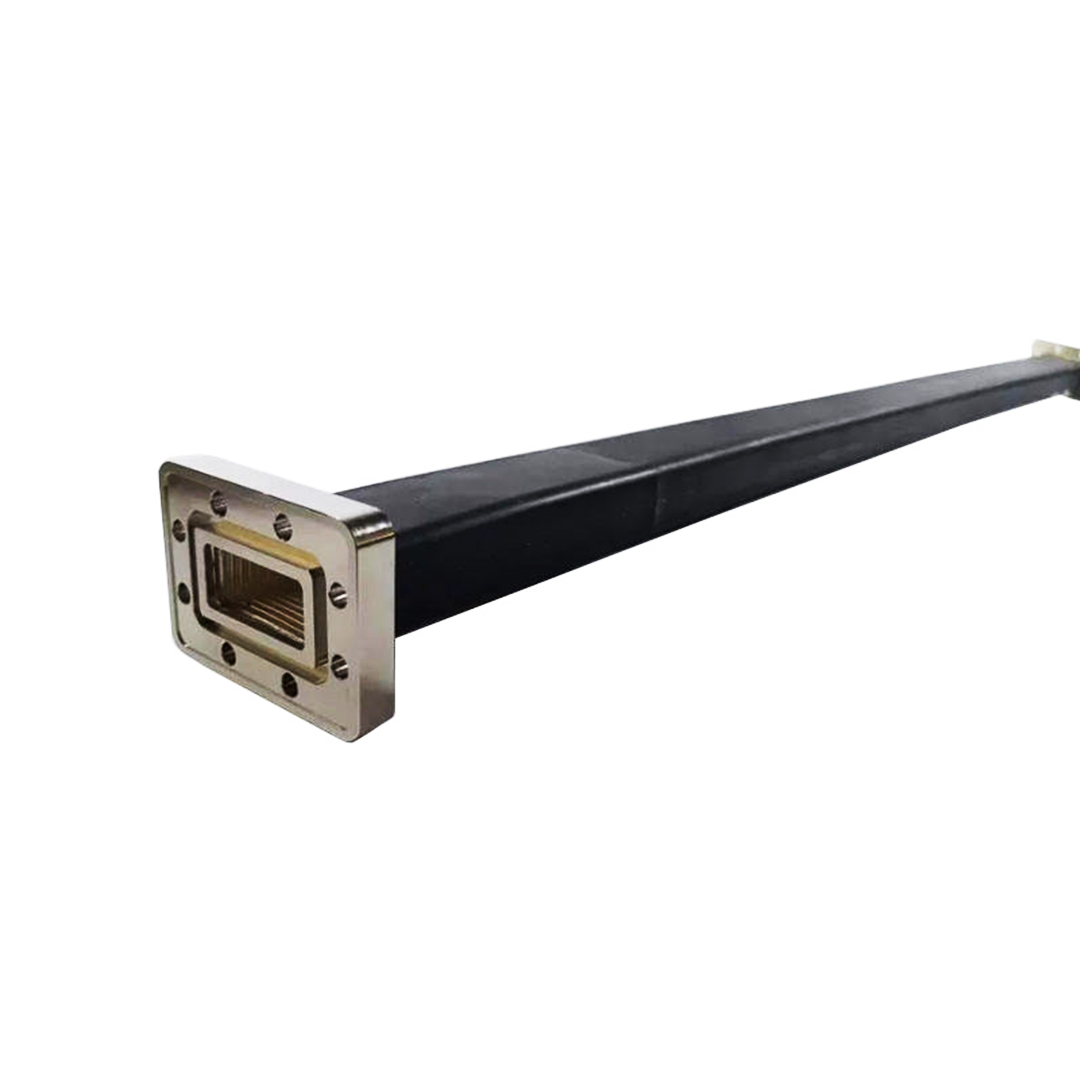

Flexible Twist Rectangular, Waveguide, WR187, 50Ω, 5450-5650 MHz

Features

- Waveguide Type WR187

- Flange Type CPR-G

- Material Brass Silicon Rubber, Brass

- Pressurization 30psi

- Maximum Twist 214deg/m

- Minimum Bend Radius (E Plane) 102mm

- Repeated Bend Radius, E plane 400mm

- Minimum Bend Radius (H Plane) 204mm

- Repeated Bend Radius, H plane 800mm

- Length L=500 mm

- Operating temperature -40°C ~+75°C

- Storage Temperature -55°C ~+85°C

Description

Mechanical Specifications

Waveguide Type

WR187

Flange Type

CPR-G

Material

Brass Silicon RubberBrass

Pressurization

30psi

Maximum Twist

214deg/m

Minimum Bend Radius (E Plane)

102mm

Repeated Bend Radius, E plane

400mm

Minimum Bend Radius (H Plane)

204mm

Repeated Bend Radius, H plane

800mm

Length

L=500 mm

Operating temperature

-40°C ~+75°C

Storage Temperature

-55°C ~+85°C

Electrical Specifications

Frequency Range

5.45 -5.65 GHz

VSWR (Max)

≤1.1

Insertion Loss (Max)

0.05 dB

Power Handling

2kW
