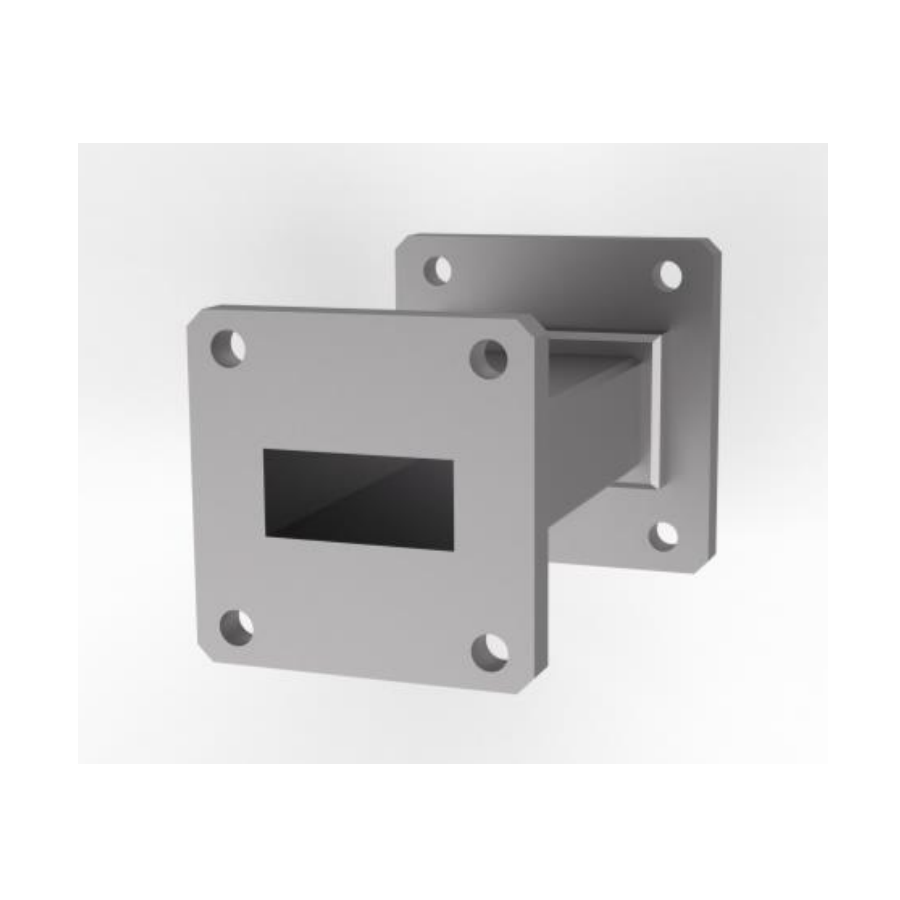

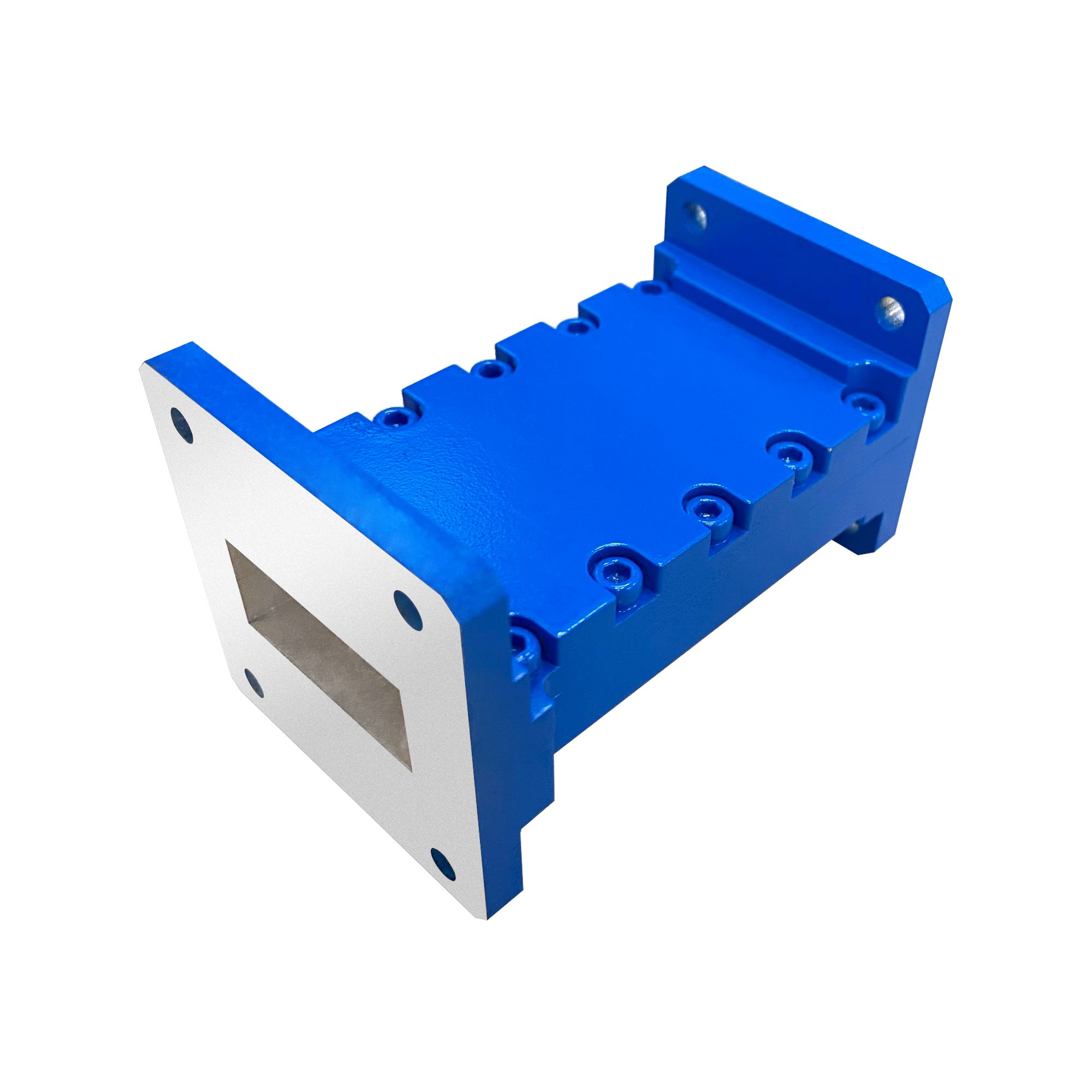

VES-AD-WR90WR112

WR112 to WR90 Waveguide

Features

- Transitions from WR-112 to WR-90 waveguide
- FBP100 Flange

Description

Electrical Specifications

Description

Min.

Typ.

Max.

Unit

VSWR

-

1.08

-

:1

Mechanical Specifications

Size

Length                  3 in [76.2 mm]

Weight                 300g

Description

Flange 1

Waveguide

Flange 2

Designation

FBP100

WR-112 to WR-90

FBP100

Flange Type

Square Cover

-

Square Cover

Material

Brass

Brass

Brass

Document

No.

Name

Type

1

Datasheet

PDF
