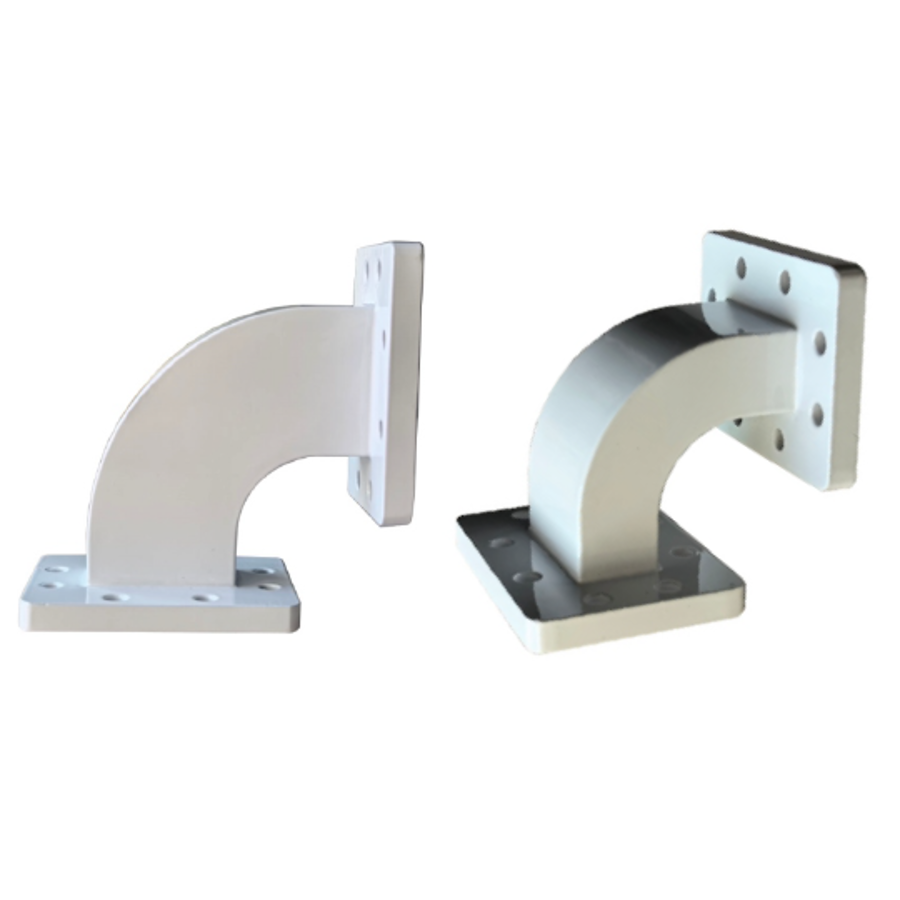

E/H Bend Waveguide, WR187, 50Ω, 5450-5650 MHz

Features

- Frequency Range: 5.45 -5.65 GHz
- VSWR (Max): 1.15
- Insertion Loss (Max): 0.05 Db
- Power Handling: 0.5KW (CW), 5KW (Peak power)

Description

Mechanical Specifications

Waveguide Type

WR187

Flange Type

FDM48/CPR187G (Grooved)

Material

Aluminum

Inside finish

Chromate conversion

Outside finish

Anticorrosion Grey paint

Operating temperature

-40°C ~+75°C

Storage Temperature

-55°C ~+85°C

Electrical Specifications

Frequency Range

5.45 -5.65 GHz

VSWR (Max)

1.15

Insertion Loss (Max)

0.05 dB

Power Handling

0.5KW (CW)

5KW (Peak power)
