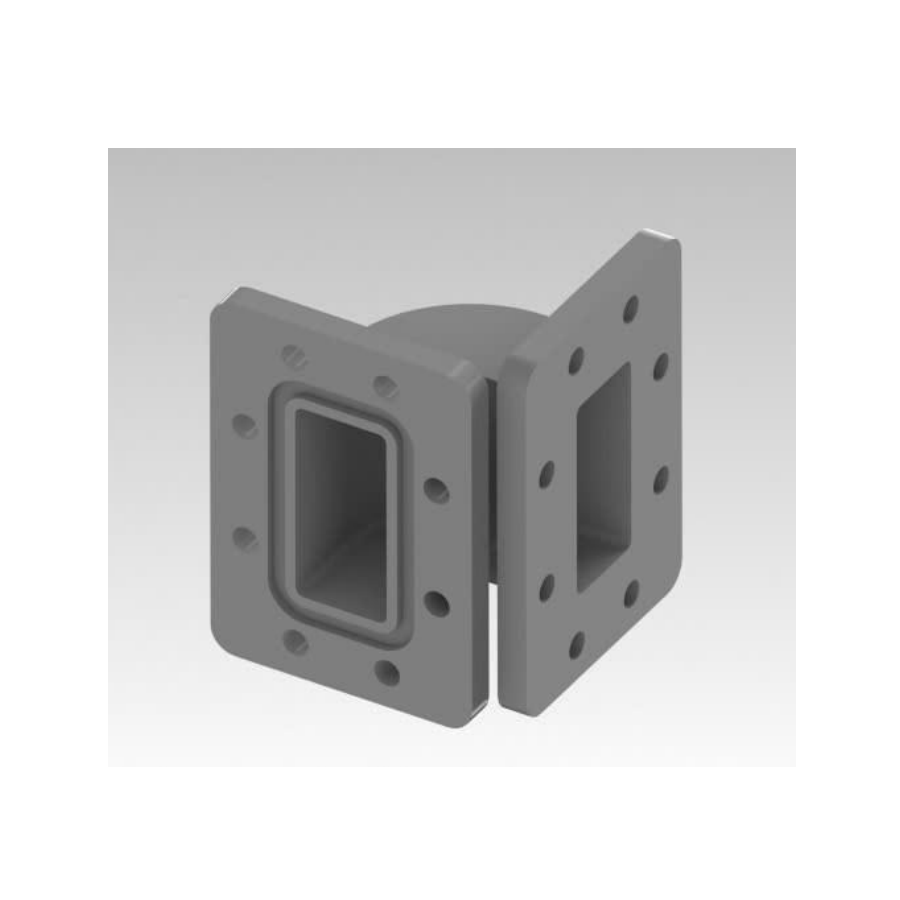

Miter Bend Waveguide

Passband Frequency Range: 3950 – 5850 MHz

Features

- Passband: Band Pass
- Passband Frequency Range: 3950 – 5850 MHz
- Connector: WR187
- Material: Aluminum
- Size (mm): 71,75x71,75x88,9
- Weight (g): 200

Description

Electrical Specifications at - 40°C to +85°C

Description

Min.

Typ.

Max.

Unit

Passband Frequency Range

3950

-

5850

MHz

Insertion Loss



0.2



dB

VSWR



1.3

:1

Power handling

100

kW

size

47.55 × 22.15

mm

Document

No.

Name

Type

1

Datasheet

PDF
