VES-FIL-7900

DR Bandpass Filter 7900MHz

Features

- Dielectric Resonator Based Band Pass Filter (BPF)
- Center Frequency: 7900MHz
- Resonator Material Ceramics K27
- Impedance: 50Ω
- Temperature Operating Range: -15DegC to +70DegC

Description

Electrical Specifications

Description

Specification Value

Unit

Passband Center Frequency

7900

MHz

Insertion Loss @ Centre Frequency

4

dB max

1 dB Bandwidth

4

MHz max

Rejection @ 7900 ± 5 MHz

≥7

dBc

Rejection @ 7900 ± 10 MHz

≥15

dBc

Rejection @ 7900 ± 15 MHz

≥20

dBc

Rejection @ 7900 ± 20 MHz

≥25

dBc

Rejection @ 7900 ± 50 MHz

≥50

dBc

Input & Output return loss

≥ 15

dB

Operating power

10

dB max

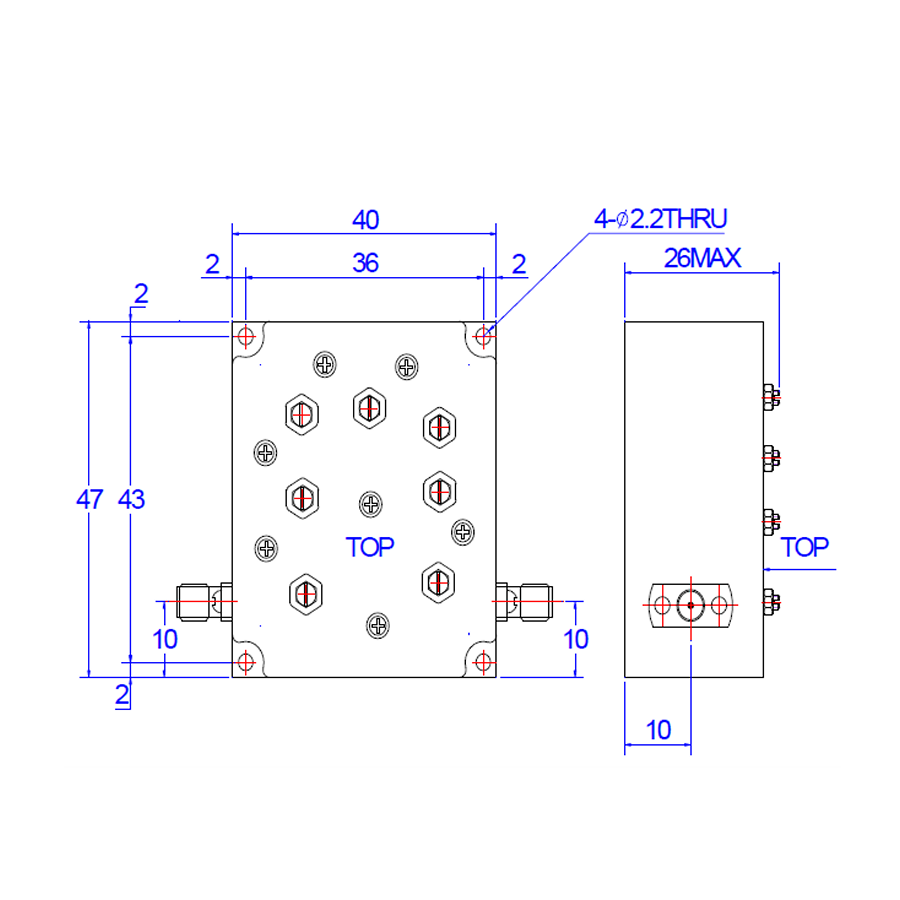

Plotted and Other Data

Notes:

- Values at +25◦C, sea level.

- ESD Sensitive Material, Transport material in Approved ESD bags.

Handle only in approved ESD Workstation.
