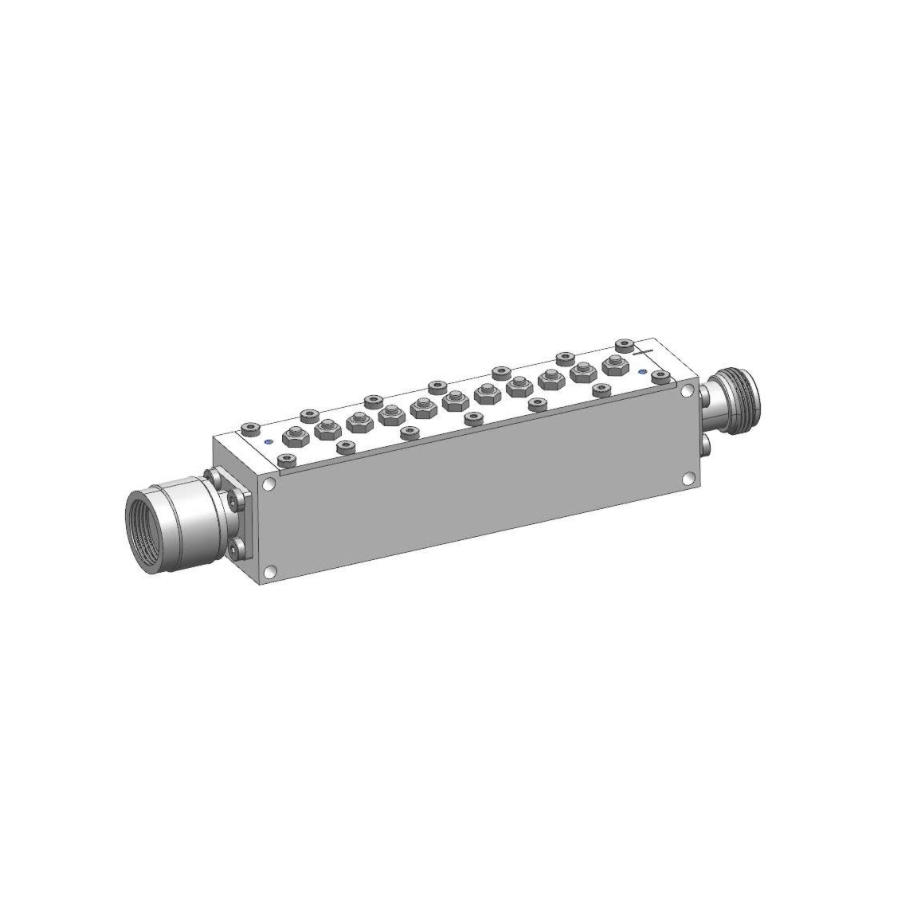

VES-FIL-2450

Cavity Bandpass Filter

Features

- Pass Band Frequency (MHz): 2400 ~ 2500
- Center Frequency (MHz): 2450
- Bandwidth (MHz): 100
- Pass Band Insertion Loss (dB) 0.5
- Pass Band Ripple (dB): 0.2
- Pass Band Return Loss (dB): 17

Description

Electrical Specifications

Parameter

unit

Specification

remark

Pass Band Frequency

MHz

2400 ~ 2500

Center Frequency

MHz

2450

Bandwidth

MHz

100

Pass Band Insertion Loss

dB

0.5

Pass Band Ripple

dB

0.2

Pass Band Return Loss

dB

17

Rejection

dB

33 Min. @ DC - 2250 MHz

33 Min. @ 2600 - 3000 MHz

Power handling

W

40

Operating Temperature

-30 to +70

Storage Temperature

-55 to +95

Shock

G

20G. 11ms

Vibration

G

20G. 5 to 200Hz

In / Out Impedance

????

50

Mounting Method

-

Threaded Mouting Holes

Connector Type

-

Female input and male output

Dimensions

mm

116*28.7*24

Weight

KG

0.185

Surface finish

-

Black Paint
