VES-FIL-5800

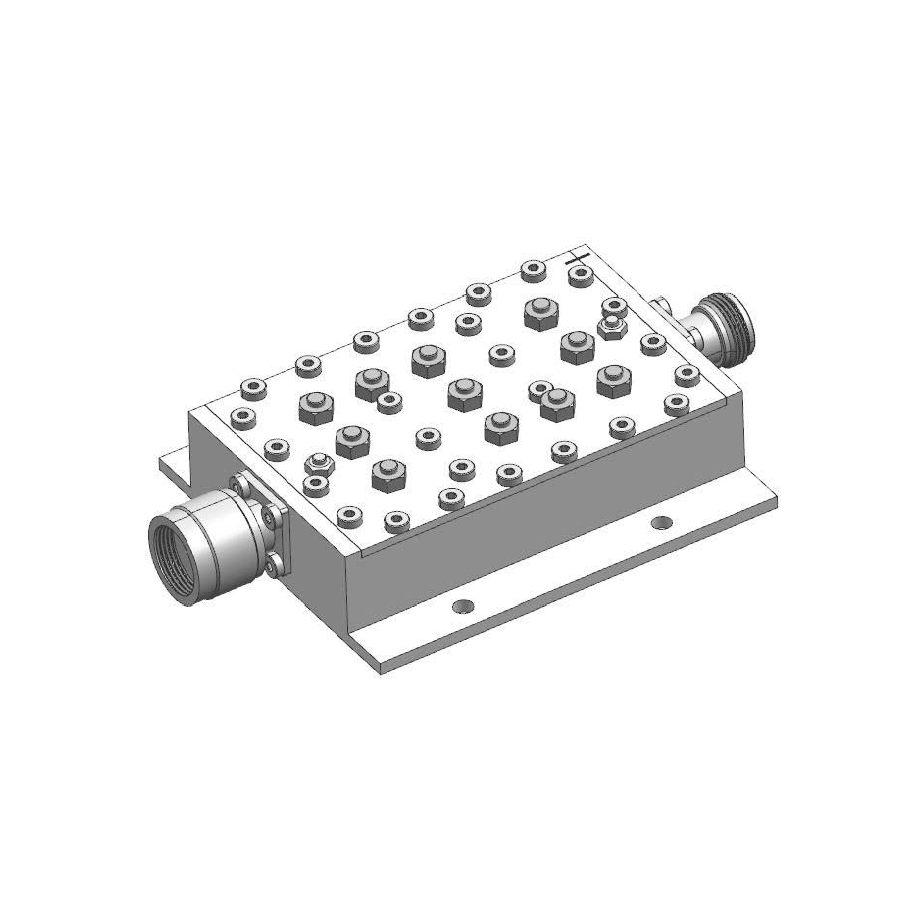

Cavity Bandpass Filter

Features

- Pass Band Frequency (MHz): 5700 ~ 5900
- Center Frequency (MHz): 5800
- Bandwidth (MHz): 200
- Pass Band Insertion Loss (dB): 0.5
- Pass Band Ripple (dB): 0.2
- Pass Band Return Loss (dB): 17
- Rejection (dB): 65 Min. @ DC - 5365 MHz

Description

Electrical Specifications

Parameter	unit	Specification	remark
Pass Band Frequency	MHz	5700 ~ 5900
Center Frequency	MHz	5800
Bandwidth	MHz	200
Pass Band Insertion Loss	dB	0.5
Pass Band Ripple	dB	0.2
Pass Band Return Loss	dB	17
Rejection	dB	65 Min. @ DC - 5365 MHz
Power handling	W	50
Operating Temperature	℃	-45 to +85
Storage Temperature	℃	-55 to +95
Shock	G	20G. 11ms
Vibration	G	20G. 5 to 200Hz
In / Out Impedance	????	50
Mounting Method	-	Threaded Mouting Holes
Connector Type	-	Female input and male output
Dimensions	mm	101.687.623
Weight	KG	0.35
Surface finish	-	Black Paint
