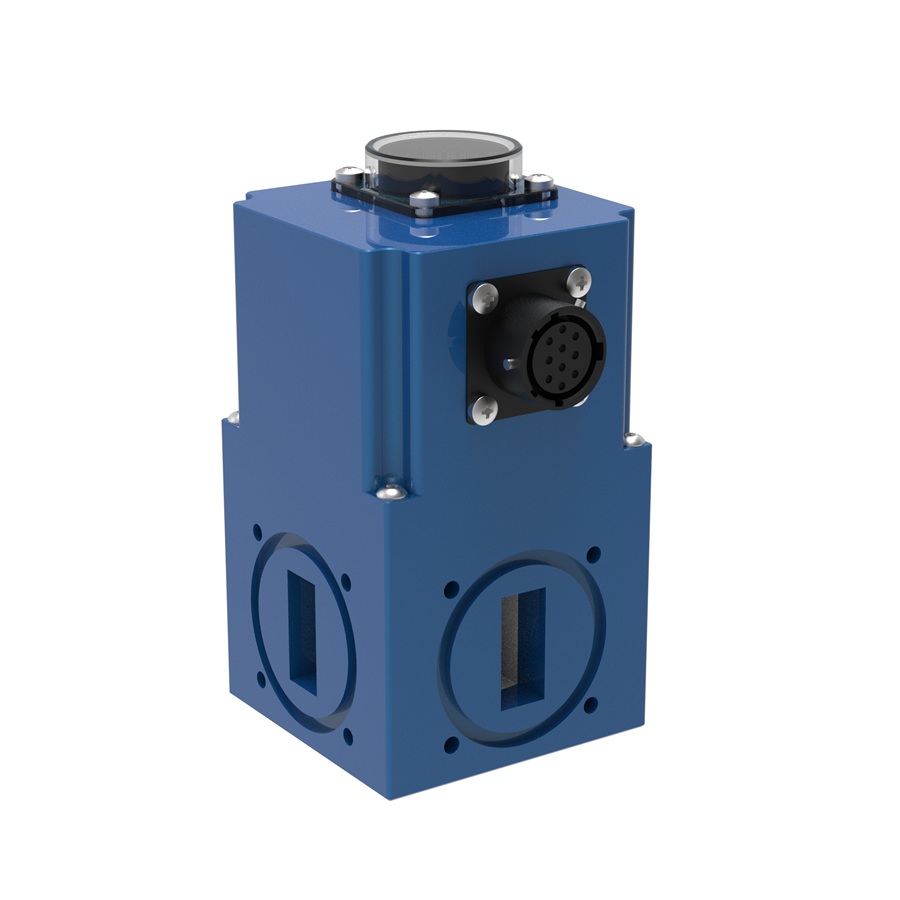

VES-SW-X423
WR-90 Waveguide Electromechanical, Relay SPDT Latching Switch – X band
Features
- 8.2 to 12.4 GHz SDPT Waveguide Switch
- 12 VDC Nominal Voltage
- Quick Connect Circular DC Connector with Mate
- -40°C to +85°C Operating Temperature
Description
Electrical Specifications
Switch Type SPDT
Actuator Type Latching
Switching Sequence Break Before Make
Description |
Minimum |
Typical |
Maximum |
Units |
Frequency Range |
8.2 |
- |
12.4 |
GHz |
Impedance |
- |
50 |
- |
Ohm |
Operating Voltage |
10 |
12 |
20 |
Volt |
VSWR |
- |
1.08 |
1.2 |
:1 |
Insertion Loss |
- |
0.2 |
- |
dB |
Isolation |
- |
80 |
- |
dB |
Switching Time |
- |
60 |
80 |
ms |
Input Power (CW) |
- |
- |
5 |
kW |
Input Power (Peak) 10% Duty Cycle |
- |
- |
123 |
kW |
