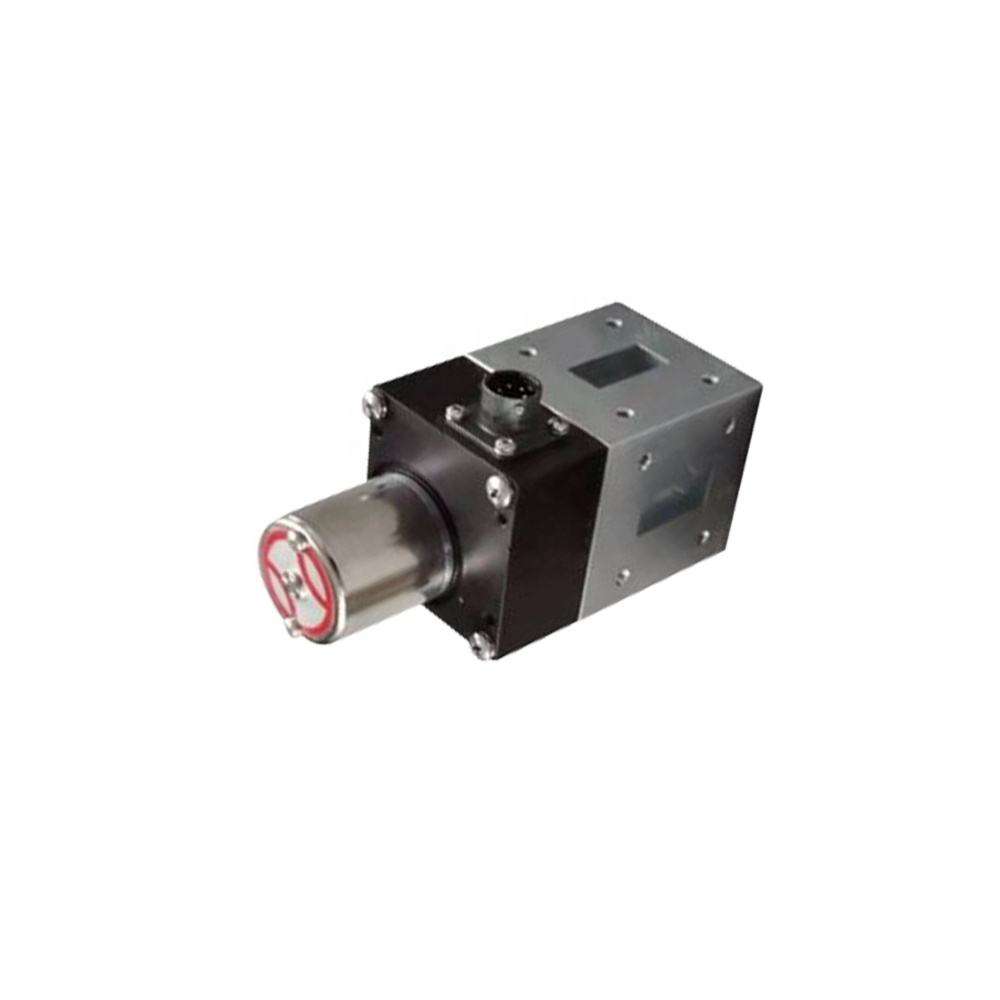

VES-SW-1015

W

Features

- 10 to 15 GHz Waveguide Switch

- 24 VDC Nominal Voltage

- Working mode: Power off in place

- Operating Temperature: -50°C to +70°C

Description

Switch Type:

Control Mode/Interface

Electric/Manual

(TYB3112E10-6P)

Drive mode:

Electric + Manual

Voltage

24V~28V

Current

≤1 A

Switching Speed

<50ms

Switch Lifetime

100,000 times

Electrical Specifications at 25˚ C

Parameter

Specification

Unit

Frequency Range

10000-15000

MHz

VSWR (Max)

≤1.15

:1

Insertion Loss

≤0.15

dB

Isolation

≥50dB

dB

Power Handling (Design Guarantee)

3kW (CW)

W
