VES-SW-5482

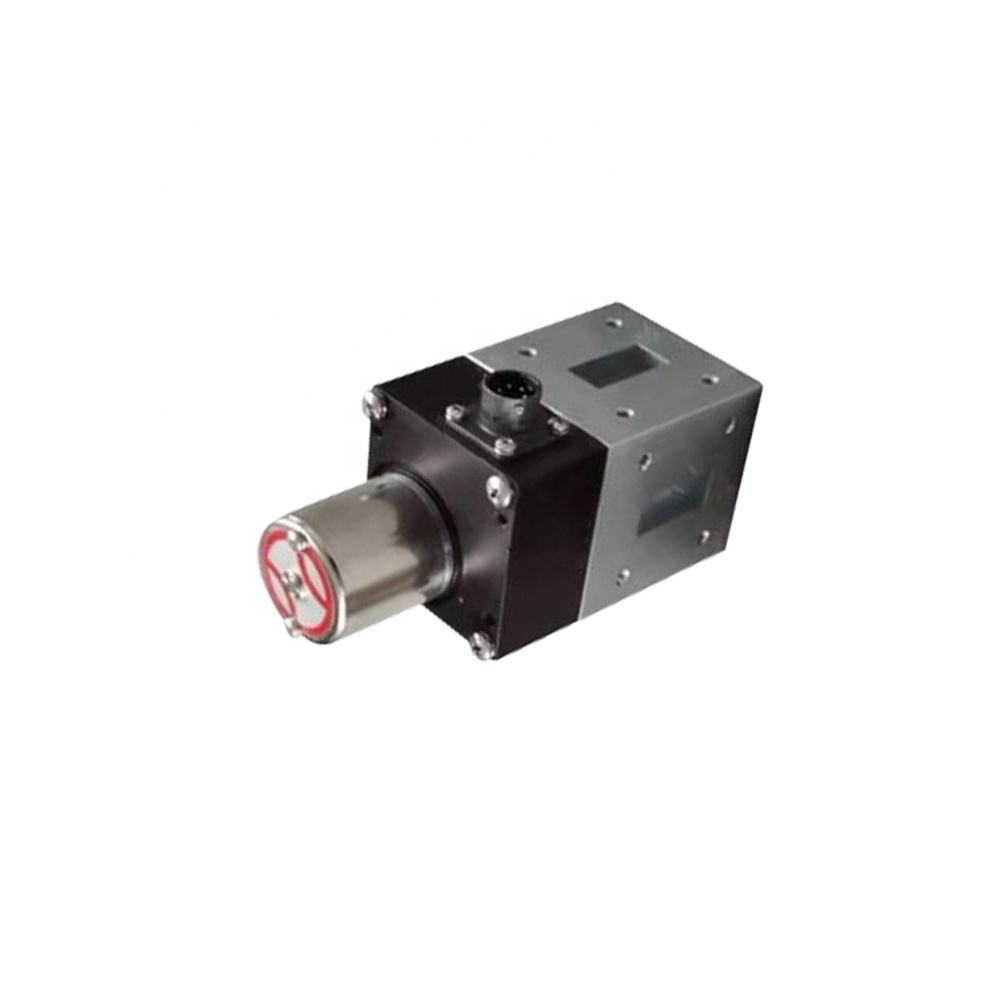

WR137 W/G Rotary Transfer Switch, WR137, 50Ω, 5400-8200 MHz

Features

- Low Insertion Loss, 0.8 dB typ. - High Isolation, 23 dB typ. - Low VSWR, 1.3:1 typ. - Wideband, 1 to 4 GHz - Tight Amplitude Balance, ± 0.3 dB. - Tight Phase Balance, ±3°. - Power Handling 1W (Combined), 20W (Distribution). - Temperature range -55°C to +85°C

Applications

Wireless communication

Satellite communication

WLan/Wimax

ISM band instrument

Information System for Automotive Safety

Description

<table border="1" cellspacing="0" class="Table" style="border-collapse:collapse; border:solid black 1.0pt; width:496.0pt"> <tbody> <tr> <td colspan="4" style="background-color:#00b050; background:#00b050; border-style:solid; border-width:1.0pt; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:496.0pt"> Switch Type: </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:133.0pt"> Control Mode/Interface </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:115.0pt"> Electric/Manual (TYB3112E10-6P) </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:121.0pt"> Drive mode: </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:127.0pt"> Electric + Manual </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:133.0pt"> Voltage </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:115.0pt"> 24V~28V </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:121.0pt"> Current </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:127.0pt"> ≤1 A </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:133.0pt"> Switching Speed </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:115.0pt"> <50ms </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:121.0pt"> Switch Lifetime </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:127.0pt"> 100,000 times </td> </tr> </tbody> </table> Electrical Specifications at 25˚ C <table border="1" cellspacing="0" class="Table" style="border-collapse:collapse; border:solid black 1.0pt; width:493.0pt"> <tbody> <tr> <td style="background-color:#00b050; background:#00b050; border-style:solid; border-width:1.0pt; height:26.1pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:182.0pt"> Parameter </td> <td style="background-color:#00b050; background:#00b050; border-left:none; border-style:solid; border-width:1.0pt; height:26.1pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:185.0pt"> Specification </td> <td style="background-color:#00b050; background:#00b050; border-left:none; border-style:solid; border-width:1.0pt; height:26.1pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:125.0pt"> Unit </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:182.0pt"> Frequency Range </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:185.0pt"> 5400-8200 </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:36.5pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:125.0pt"> MHz </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:182.0pt"> VSWR (Max) </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:185.0pt"> ≤1.1 </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:1.0cm; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:125.0pt"> :1 </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:182.0pt"> Insertion Loss </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:185.0pt"> ≤0.1 </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:125.0pt"> dB </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:182.0pt"> Isolation </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:185.0pt"> ≥50dB </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:125.0pt"> dB </td> </tr> <tr> <td style="background-color:white; background:white; border-style:solid; border-top:none; border-width:1.0pt; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:182.0pt"> Power Handling (Design Guarantee) </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:185.0pt"> ≥ 5kW (CW) </td> <td style="background-color:white; background:white; border-bottom:solid black 1.0pt; border-left:none; border-right:solid black 1.0pt; border-top:none; height:32.4pt; padding:3.6pt 7.2pt 3.6pt 7.2pt; width:125.0pt"> W </td> </tr> </tbody> </table> Document <table border="1" cellspacing="0" class="Table" style="background:#f8f8f9; border-collapse:collapse; border:solid windowtext 1.0pt"> <tbody> <tr> <td style="background-color:#00b050; background:#00b050; border-style:solid; border-width:1.0pt; height:19.85pt; padding:0cm 5.4pt 0cm 5.4pt; width:35.75pt"> No. </td> <td style="background-color:#00b050; background:#00b050; border-left:none; border-style:solid; border-width:1.0pt; height:19.85pt; padding:0cm 5.4pt 0cm 5.4pt; width:292.5pt"> Name </td> <td style="background-color:#00b050; background:#00b050; border-left:none; border-style:solid; border-width:1.0pt; height:19.85pt; padding:0cm 5.4pt 0cm 5.4pt; width:122.55pt"> Type </td> </tr> <tr> <td style="background-color:#f8f8f9; background:#f8f8f9; border-style:solid; border-top:none; border-width:1.0pt; height:19.85pt; padding:0cm 5.4pt 0cm 5.4pt; width:35.75pt"> 1 </td> <td style="background-color:#f8f8f9; background:#f8f8f9; border-bottom:solid windowtext 1.0pt; border-left:none; border-right:solid windowtext 1.0pt; border-top:none; height:19.85pt; padding:0cm 5.4pt 0cm 5.4pt; width:292.5pt"> Datasheet </td> <td style="background-color:#f8f8f9; background:#f8f8f9; border-bottom:solid windowtext 1.0pt; border-left:none; border-right:solid windowtext 1.0pt; border-top:none; height:19.85pt; padding:0cm 5.4pt 0cm 5.4pt; width:122.55pt"> PDF </td> </tr> </tbody> </table>
