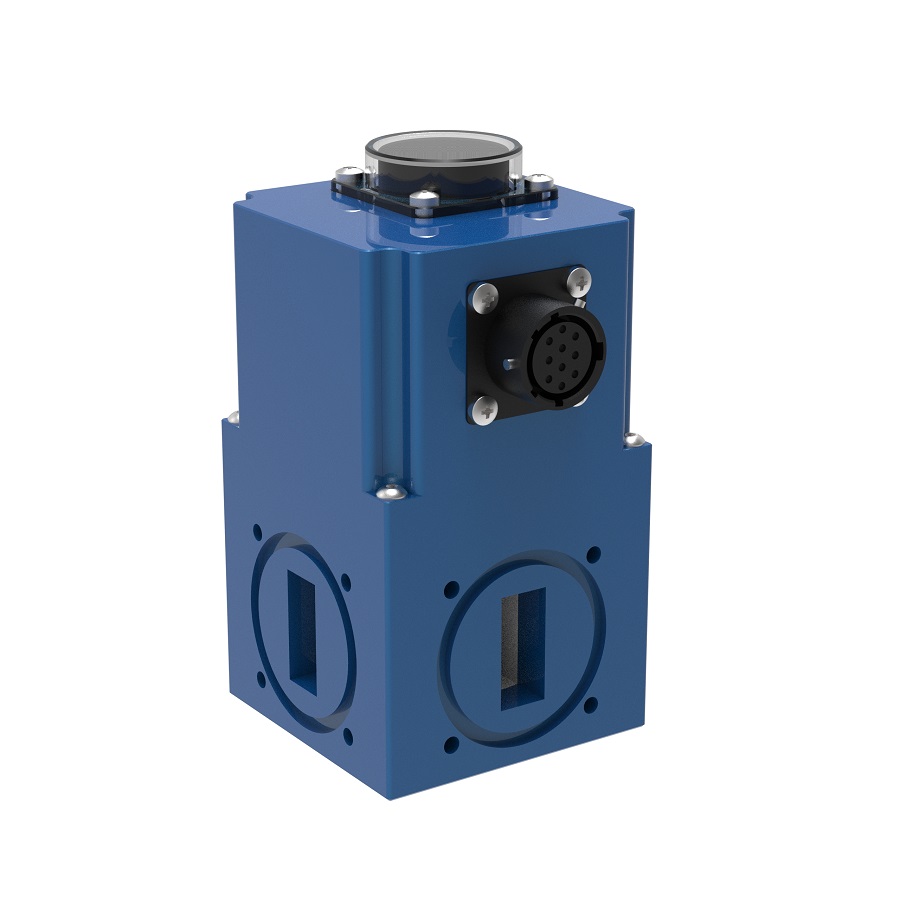

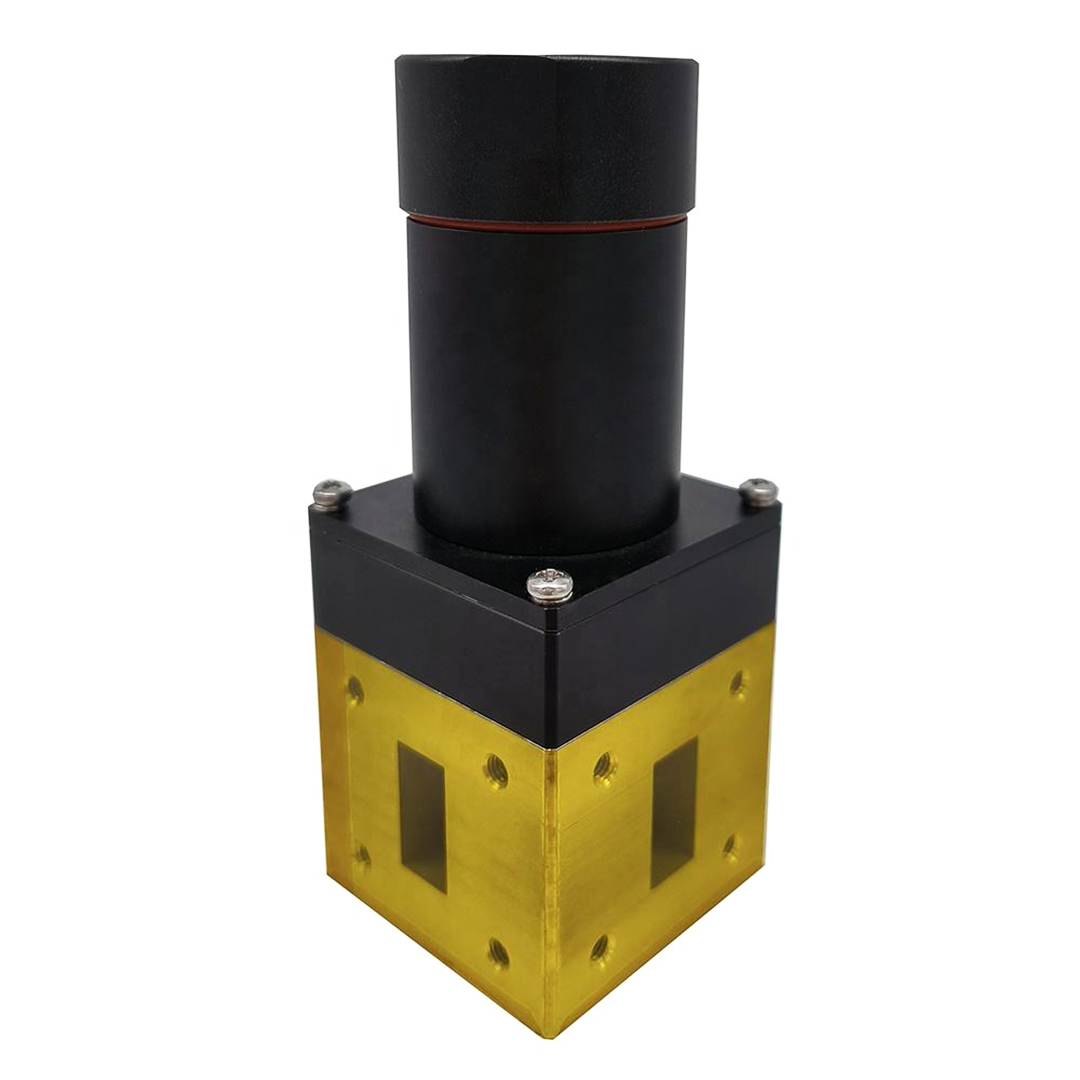

WR229 W/G Rotary Transfer Switch, WR229, 50Ω, 3300-4900 MHz

Features

- 3.3 to 4.9 GHz SPDT Waveguide Switch

- 28 VDC Nominal Voltage

- Switch Type: SPDT

- 55°C to +65°C Operating Temperature

Description

Switch Type:

Control Mode/Interface

Electric/Manual

(JY3114E10-06PN)

Port Switching

SPDT

Voltage

28V

Current

≤2.5 A

Switching Speed

>60ms

Switch Lifetime

100,000 times

Electrical Specifications at 25˚ C

Parameter

Specification

Unit

Frequency Range

3300-4900

MHz

VSWR (Max)

≤1.1

:1

Insertion Loss

≤0.1

dB

Isolation

≥80dB

dB

Power Handling (Design Guarantee)

≥10 kW (CW)

W

Document

No.

Name

Type

1

Datasheet

PDF
