VES-DES-54565

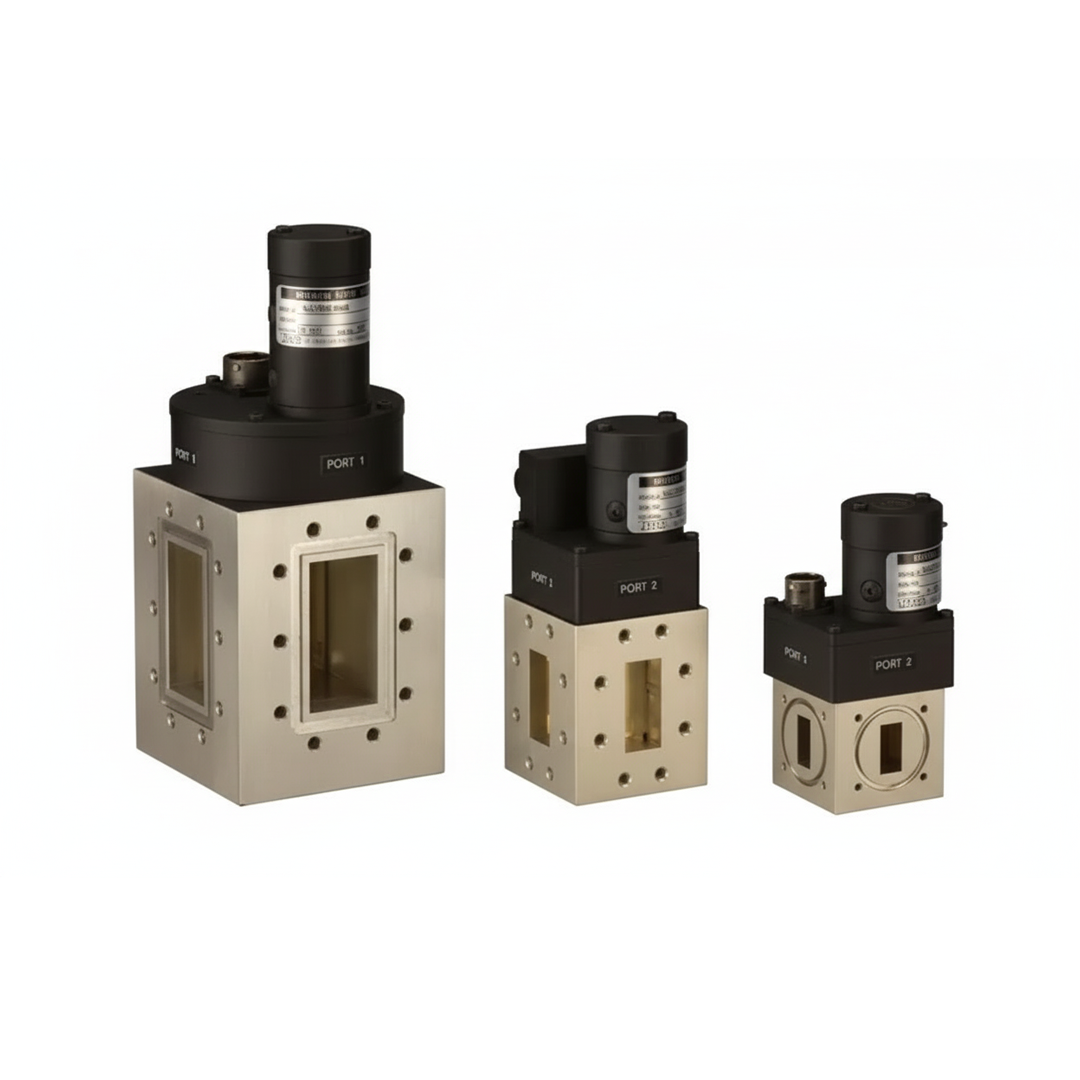

Microwave Switch, WR187, 50Ω, 5450-5650MHz
Features
- 5.45 to 5.65 GHz DPDT Waveguide Switch
- 22-32 VDC Nominal Voltage
- Switch Type: DPDT
- -40°C to +70°C Operating Temperature
Description
Switch Type: DPDT |
|||
Control Mode/Interface |
Electric/Manual (Y50X-0807) |
Work Mode |
Hold when power off |
Voltage |
22~32 V |
Current |
≤2 A |
Switching Speed |
≤100 ms |
Switch Lifetime |
≥100,000 times |
Electrical Specifications at 25˚C
Parameter |
Specification |
Unit |
Frequency Range |
5450-5650 |
MHz |
VSWR (Max) |
1.1 |
:1 |
Insertion Loss |
≤0.1 |
dB |
Isolation |
80dB Min |
dB |
Power Handling (Design Guarantee) |
500 W (CW) 5KW (Peak power) |
W |
Mechanical Specifications
Parameter |
Specification |
Waveguide Type |
WR187 |
Flange Type |
FDM48/CPR187G (Grooved) |
Material |
Aluminum |
Inside finish |
Natural conductive oxidation |
Document
No. |
Name |
Type |
1 |
Datasheet |
|
