VES-VNG5.8

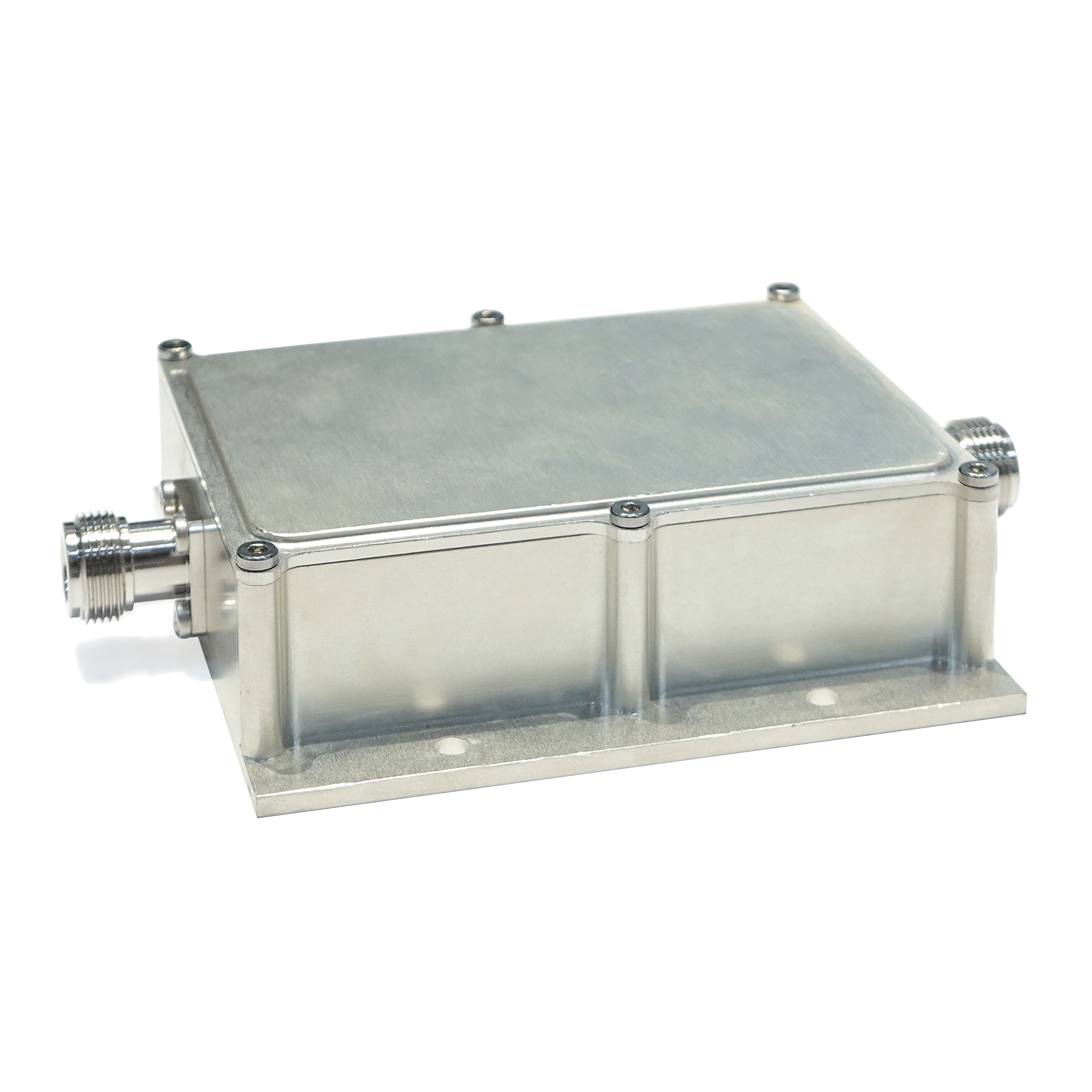

Cavity Bandpass Filter

Features

Description

Electrical Specifications

Parameter

unit

Specification

remark

Pass Band Frequency

MHz

5700 ~ 5900

Center Frequency

MHz

5800

Bandwidth

MHz

200

Pass Band Insertion Loss

dB

0.5

Pass Band Ripple

dB

0.2

Pass Band Return Loss

dB

17

Rejection

dB

65 Min. @ DC - 5365 MHz

Power handling

W

50

Operating Temperature

-45 to +85

Storage Temperature

-55 to +95

Shock

G

20G. 11ms

Vibration

G

20G. 5 to 200Hz

In / Out Impedance

????

50

Water Resistance

IP67

Document

No.

Name

Type

1

Datasheet

PDF
