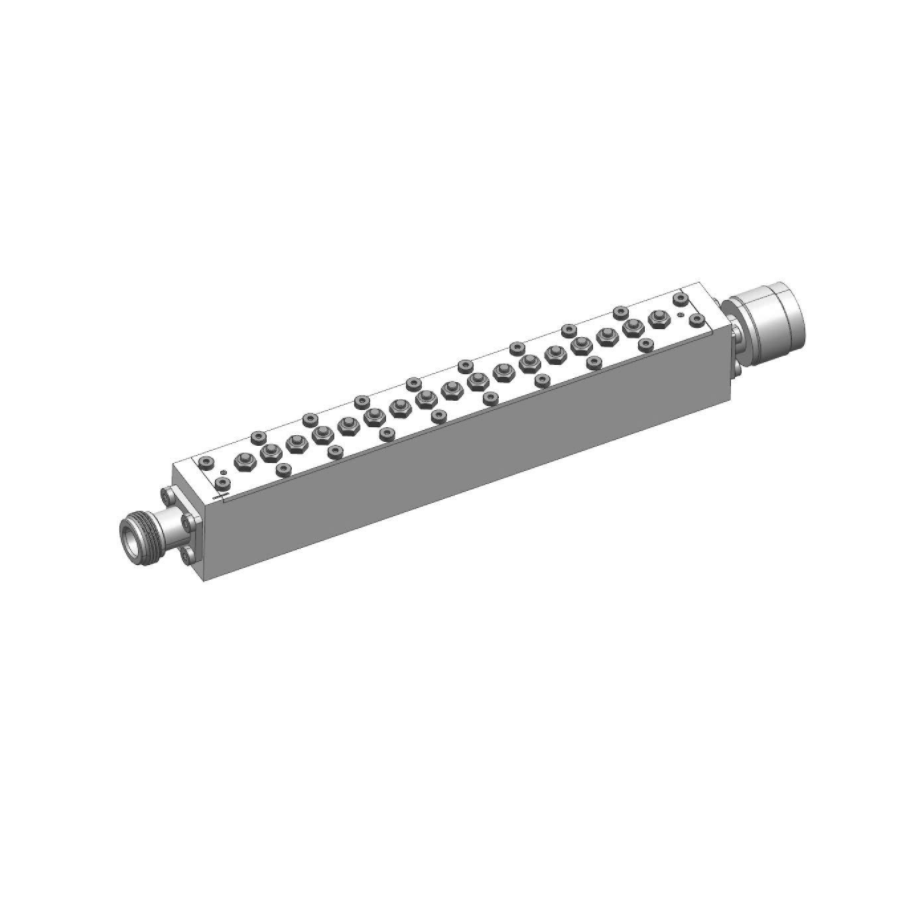

VES-FIL-2440.7
Features
- Pass Band Frequency (MHz): 2400.7 ~ 2480.7
- Center Frequency (MHz): 2440.7
- Bandwidth (MHz): 80
- Pass Band Insertion Loss (dB): 1.9
- Pass Band Ripple (dB): 0.2
- Pass Band Return Loss (dB): 17
Description
Electrical Specifications
Parameter |
unit |
Specification |
remark |
Pass Band Frequency |
MHz |
2400.7 ~ 2480.7 |
|
Center Frequency |
MHz |
2440.7 |
|
Bandwidth |
MHz |
80 |
|
Pass Band Insertion Loss |
dB |
1.9 |
|
Pass Band Ripple |
dB |
0.2 |
|
Pass Band Return Loss |
dB |
17 |
|
Rejection |
dB |
55 Min. @2360.7 MHz 55 Min. @2520.7 MH |
|
Power handling |
W |
50 |
|
Operating Temperature |
℃ |
-20 to +70 |
|
Storage Temperature |
℃ |
-55 to +95 |
|
Shock |
G |
20G. 11ms |
|
Vibration |
G |
20G. 5 to 200Hz |
|
In / Out Impedance |
???? |
50 |
|
Mounting Method |
- |
Threaded Mouting |
|
Connector Type |
- |
Female input and male output |
|
Dimensions |
mm |
171*29.5*20 |
|
Weight |
KG |
0.25 |
|
Surface finish |
- |
Black Paint |
|
Document
No. |
Name |
Type |
1 |
Datasheet |
|
