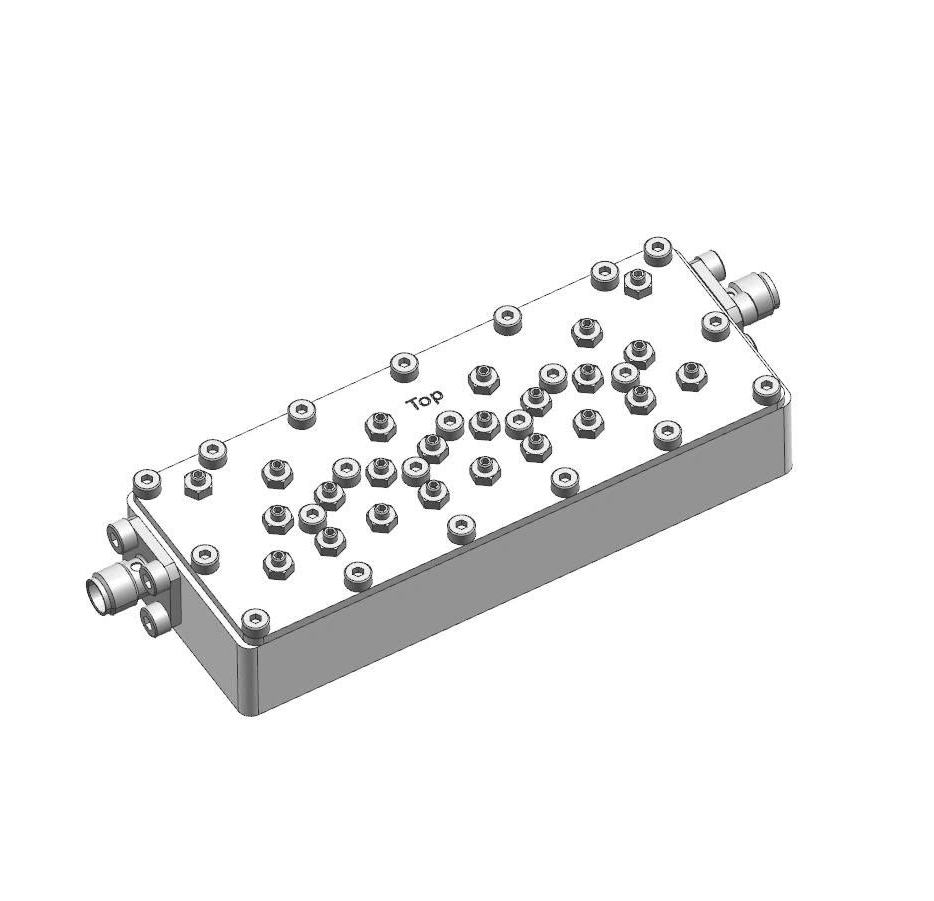

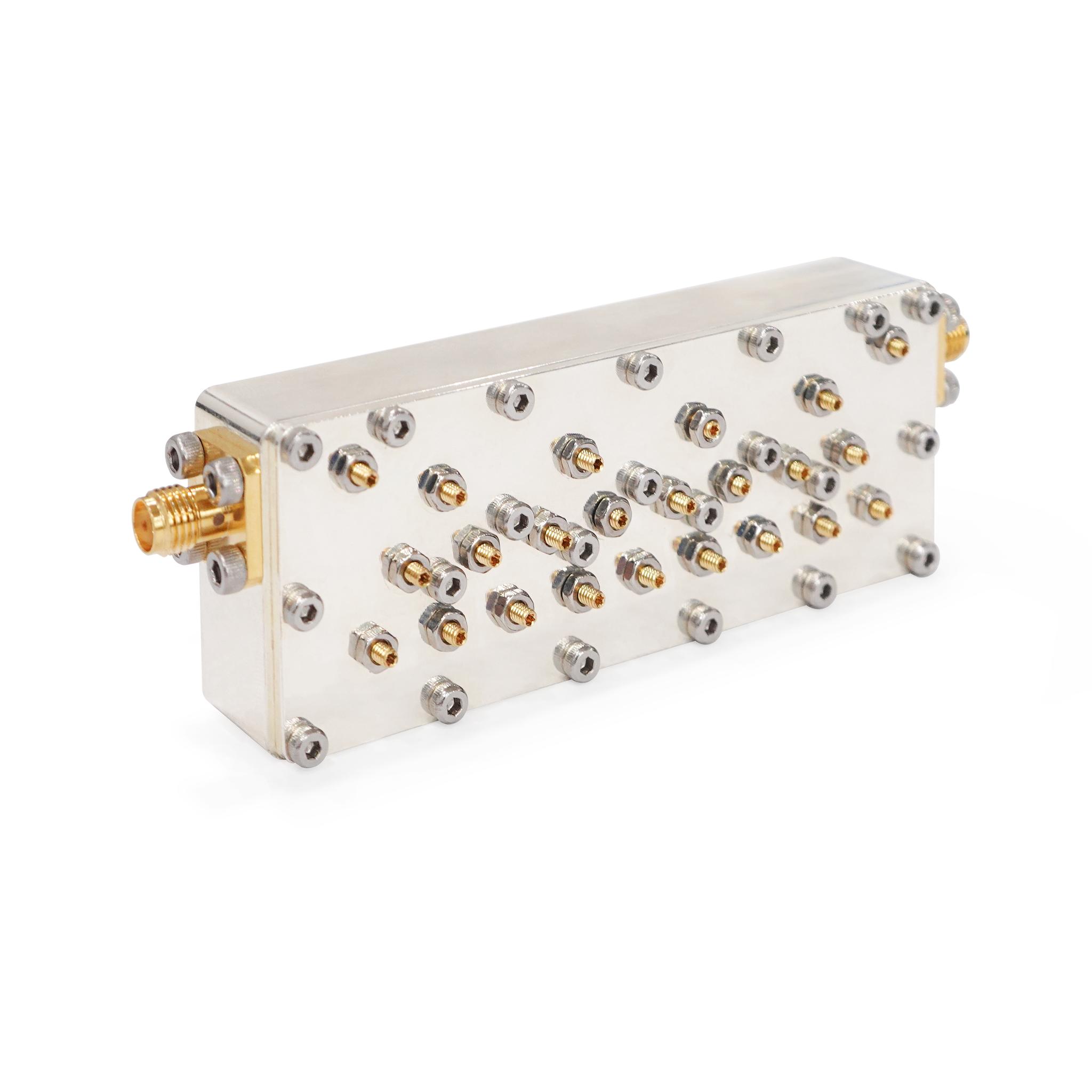

VES-FIL-3700

Pass Band 3700 - 3980 MHz

Features

- Passband: Band Pass
- Passband Frequency Range: 3700 - 3980 MHz
- Connector: SMA
- Material: Aluminum
- Size (mm): 100x32x18
- Weight (g): 100

Description

Electrical Specifications at - 45°C to +90°C

Description

Min

Typ

Max

Unit

Frequency Range

3700

-

3980

MHz

Passband Center Frequency

-

3840

-

MHz

Insertion Loss



1.7



dB

VSWR



1.3

:1

Rejection from 100-3665MHz

-50



dB

Rejection from 4030-7000 MHz

-50



dB

Power handling



50

W

impedance

50

Ohm
