VES-FIL-54565

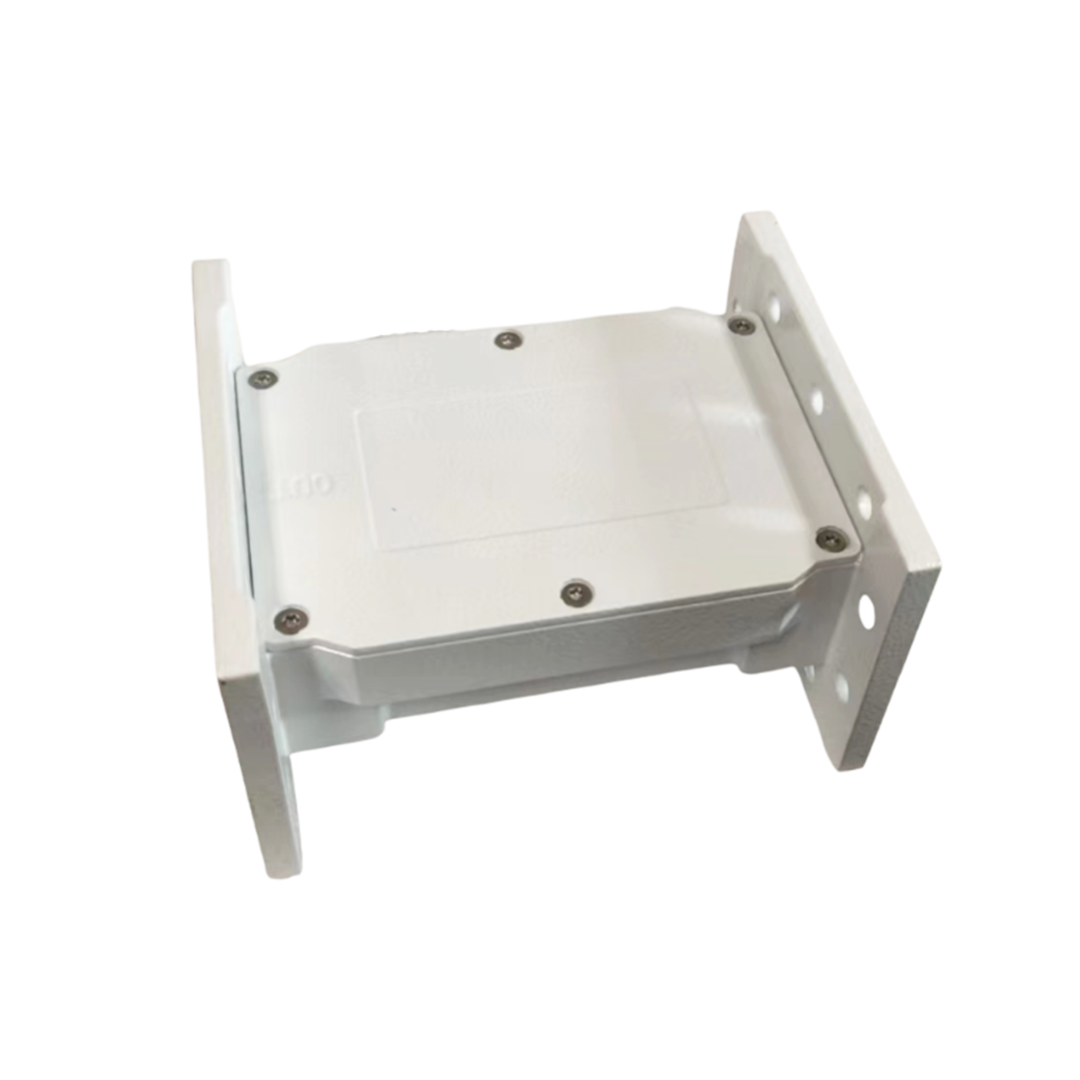

Harmonic Filter, WR187, 50Ω, 5450-5650 MHz
Features
- Low Insertion Loss, 0.3 dB typ.
- Excellent Frequency Selectivity
- Low VSWR, 1.2:1 Max.
- Broad Power Handling Capability
- Durability and Reliability
Wireless communication
Satellite communication
WLan/Wimax
ISM band instrument
Information System for Automotive Safety
Description
Specifications
|
Parameter |
Specification |
Unit |
|
Frequency Range |
5450-5650 |
MHz |
|
VSWR (Max) |
1.2 |
:1 |
|
Insertion Loss (Max) |
0.3 |
dB |
|
Flatness |
≤0.2 |
dB |
|
Out-band Rejection |
≥40dB@ 6500 MHz ～16000 MHz |
dB |
|
Power Handling (Design Guarantee) |
500 W (CW) 5KW (Peak power) |
W |
Document
|
No. |
Name |
Type |
|
1 |
Datasheet |
|
