VES-DES-54565

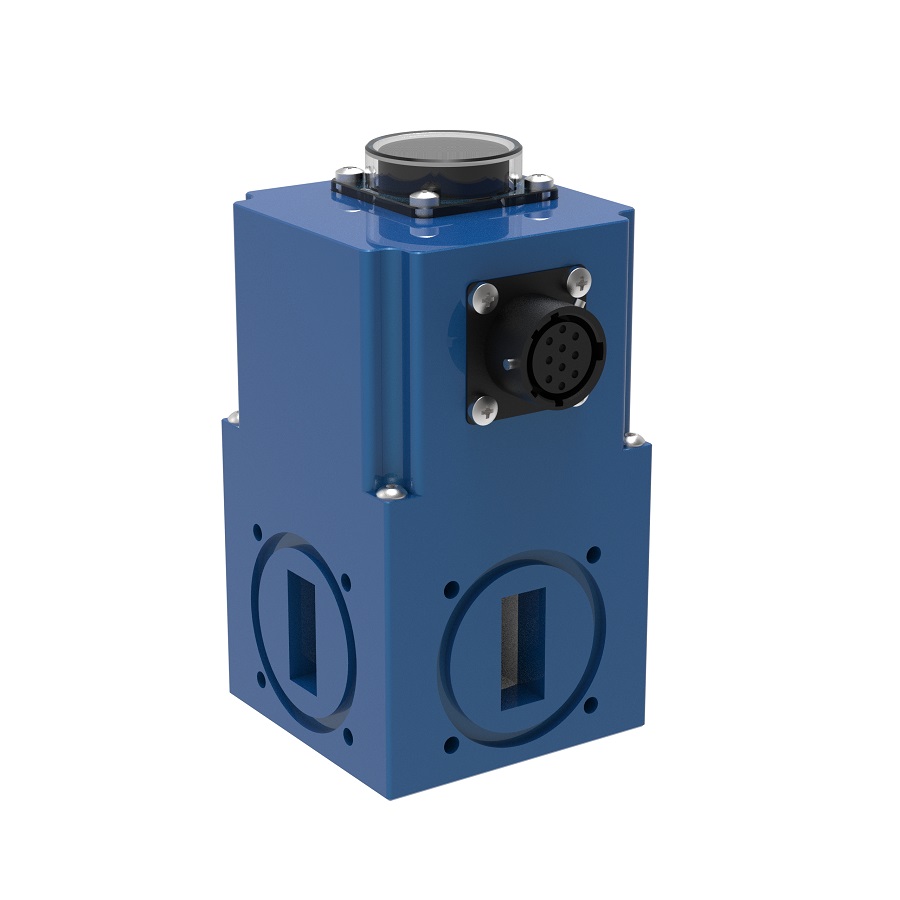

Microwave Switch, WR187, 50Ω, 5450-5650MHz

Features

- 5.45 to 5.65 GHz DPDT Waveguide Switch

- 22-32 VDC Nominal Voltage

- Switch Type: DPDT

- -40°C to +70°C Operating Temperature

Description

Switch Type: DPDT

Control Mode/Interface

Electric/Manual

(Y50X-0807)

Work Mode

Hold when power off

Voltage

22~32 V

Current

≤2 A

Switching Speed

≤100 ms

Switch Lifetime

≥100,000 times

Electrical Specifications at 25˚C

Parameter

Specification

Unit

Frequency Range

5450-5650

MHz

VSWR (Max)

1.1

:1

Insertion Loss

≤0.1

dB

Isolation

80dB Min

dB

Power Handling (Design Guarantee)

500 W (CW) 5KW (Peak power)

W

Mechanical Specifications

Parameter

Specification

Waveguide Type

WR187

Flange Type

FDM48/CPR187G (Grooved)

Material

Aluminum

Inside finish

Natural conductive oxidation

Document

No.

Name

Type

1

Datasheet

PDF
