VES-AD-SMAWR90

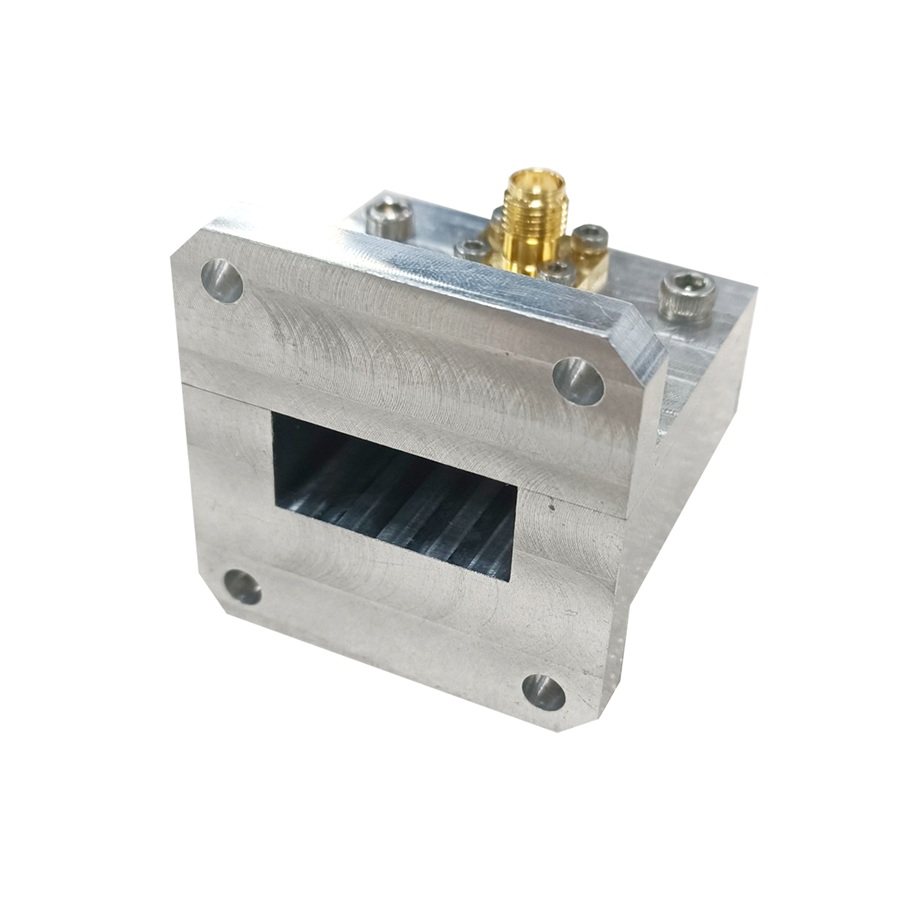

Coax to Waveguide Adapter, WR90, 8200-12400 MHz

Features

- Transitions: SMA to WR-90
- Waveguide size: WR90
- Flange: Square type FBP100
- Impedance: 50 Ohms
- Body Geometry: Right Angle

Description

Electrical Specifications

Parameter

Min

Typ

Max

Unit

Frequency Range

8.2

-

12.4

GHz

VSWR

1.25

:1

Insertion Loss

0.2

dB

Mechanical Specifications

Description

RF Connector

Waveguide Interface

Designation

Female

FBP100

Type

SMA

Square Cover

Material

Stainless Steel

Aluminum

Document

No.

Name

Type

1

Datasheet

PDF
