VES-AD-SMAWR75

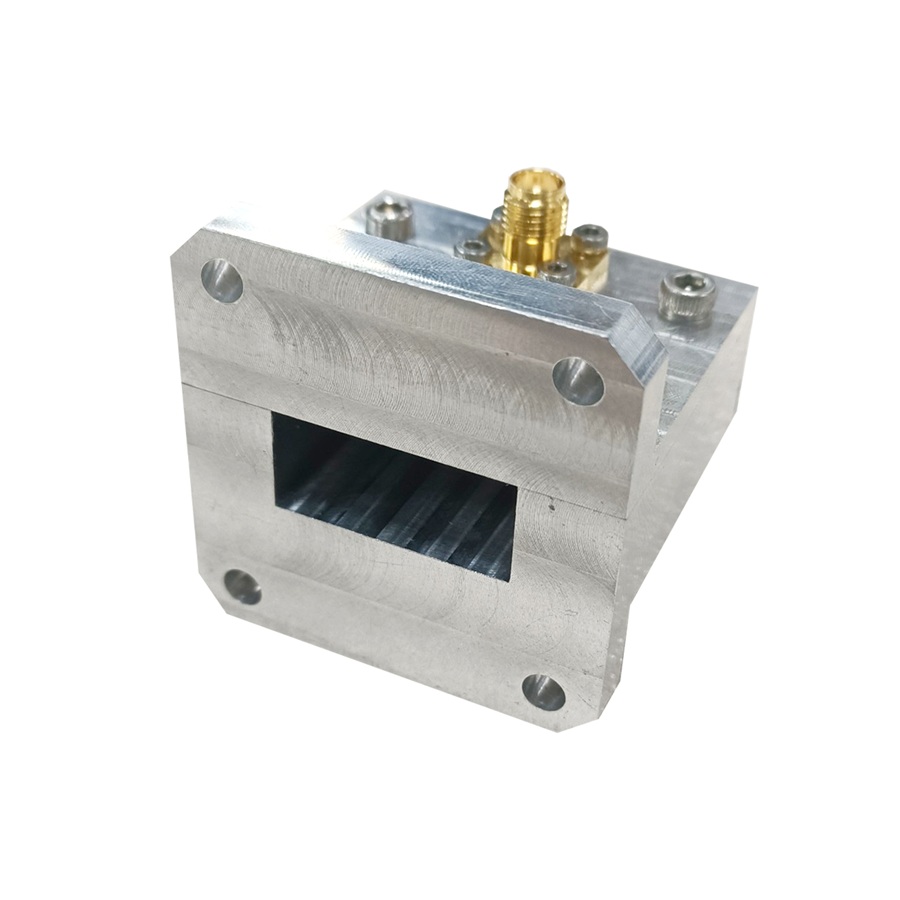

Coax to Waveguide Adapter, WR75, 10000-15000 MHz

Features

- Transitions: SMA to WR-75
- Waveguide size: WR75
- Flange: Square type FBP120
- Impedance: 50 Ohms
- Body Geometry: Right Angle

Description

Electrical Specifications

Parameter

Min

Typ

Max

Unit

Frequency Range

10

-

15

GHz

VSWR

1.25

:1

Insertion Loss

0.2

dB

Mechanical Specifications

Description

RF Connector

Waveguide Interface

Designation

Female

FBP120

Type

SMA

Square Cover

Material

Stainless Steel

Aluminum

Document

No.

Name

Type

1

Datasheet

PDF
