VES-AD-SMAWR112

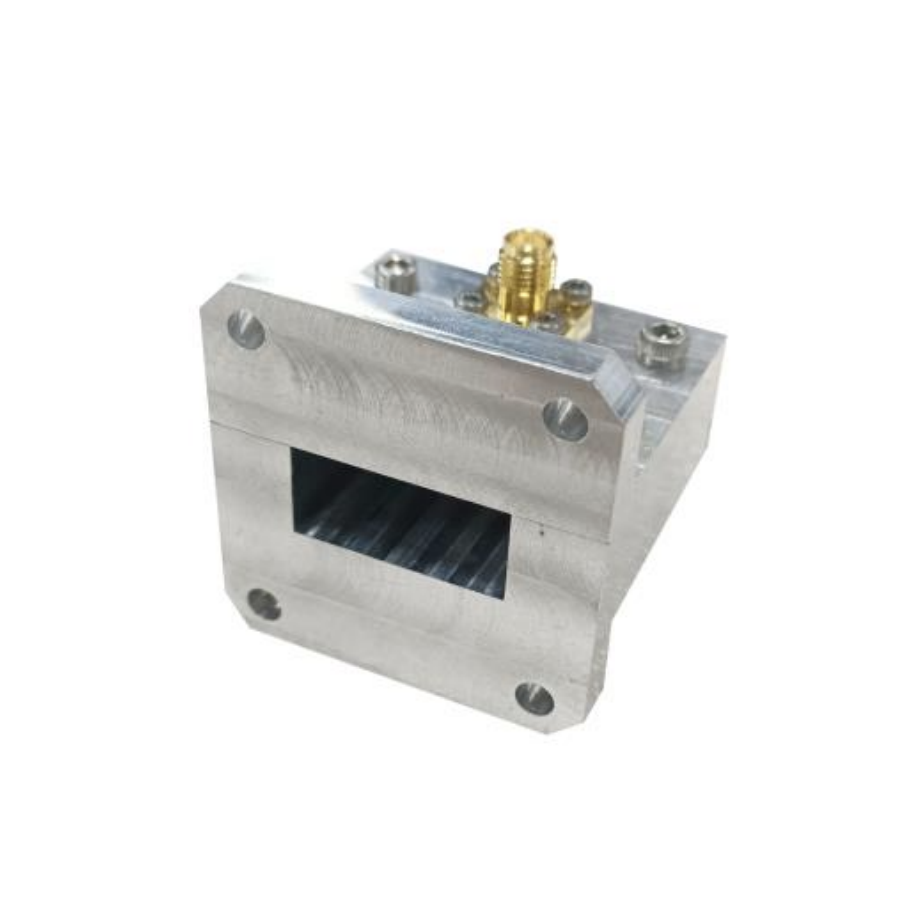

Coax to Waveguide Adapter, WR112, 7050-10000 MHz

Features

- Transitions: SMA to WR-112
- Waveguide size: WR112
- Flange: Square type FBP84
- Impedance: 50 Ohms
- Body Geometry: Right Angle

Description

Electrical Specifications

Parameter

Min

Typ

Max

Unit

Frequency Range

7.05

-

10

GHz

VSWR

1.25

:1

Insertion Loss

0.2

dB

Mechanical Specifications

Description

RF Connector

Waveguide Interface

Designation

Female

FBP84

Type

SMA

Square Cover

Material

Stainless Steel

Aluminum
