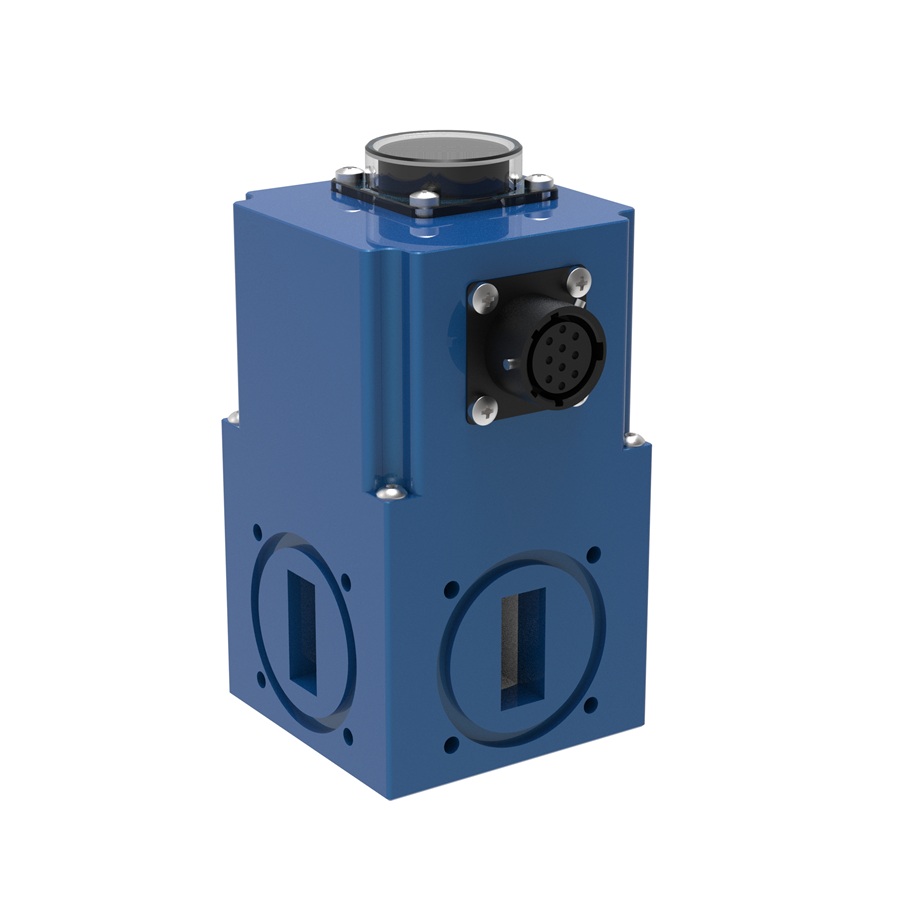

VES-SW-X423

WR-90 Waveguide Electromechanical, Relay SPDT Latching Switch – X band

Features

- 8.2 to 12.4 GHz SDPT Waveguide Switch
- 12 VDC Nominal Voltage
- Quick Connect Circular DC Connector with Mate
- -40°C to +85°C Operating Temperature

Description

Electrical Specifications

Switch Type                                    SPDT

Actuator Type                                Latching

Switching Sequence Break             Before Make

Description

Minimum

Typical

Maximum

Units

Frequency Range

8.2

-

12.4

GHz

Impedance

-

50

-

Ohm

Operating Voltage

10

12

20

Volt

VSWR

-

1.08

1.2

:1

Insertion Loss

-

0.2

-

dB

Isolation

-

80

-

dB

Switching Time

-

60

80

ms

Input Power (CW)

-

-

5

kW

Input Power (Peak) 10% Duty Cycle

-

-

123

kW
