VES-SW-5482

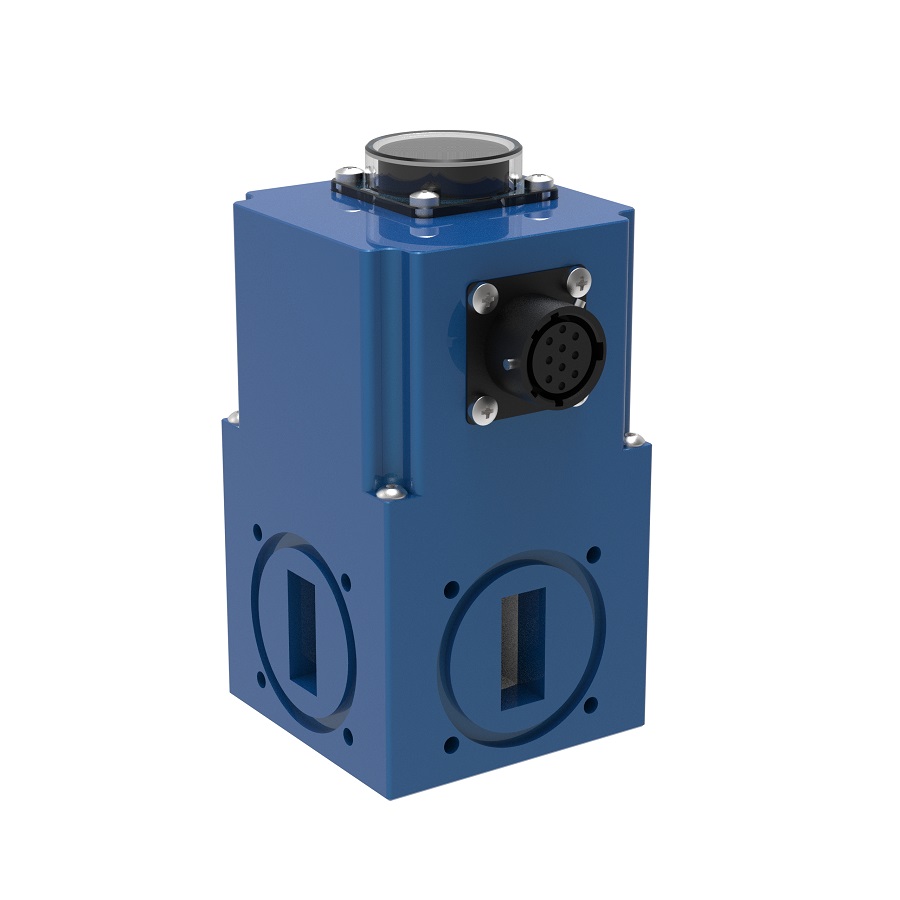

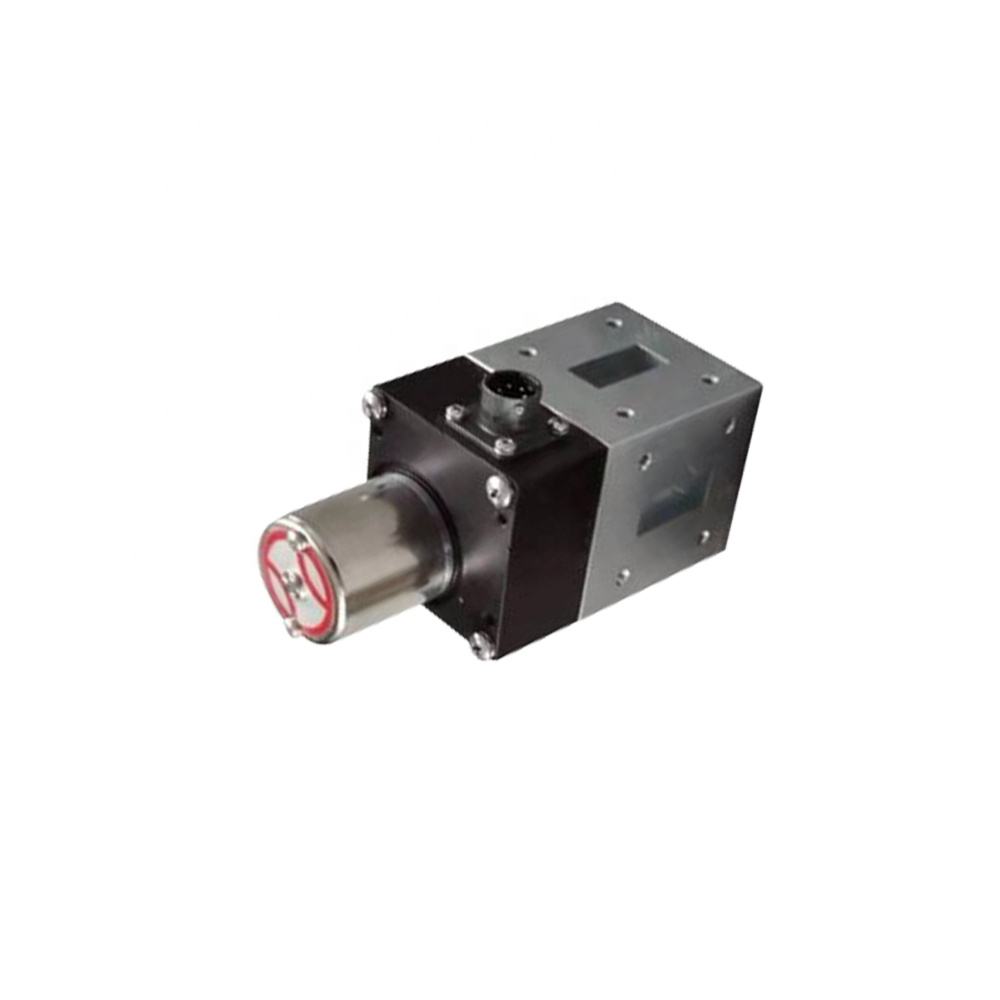

WR137 W/G Rotary Transfer Switch, WR137, 50Ω, 5400-8200 MHz

Features

- Low Insertion Loss, 0.8 dB typ.

- High Isolation, 23 dB typ.

- Low VSWR, 1.3:1 typ.

- Wideband, 1 to 4 GHz

- Tight Amplitude Balance, ± 0.3 dB.

- Tight Phase Balance, ±3°.

- Power Handling 1W (Combined), 20W (Distribution).

- Temperature range -55°C to +85°C

Description

Switch Type:

Control Mode/Interface

Electric/Manual

(TYB3112E10-6P)

Drive mode:

Electric + Manual

Voltage

24V~28V

Current

≤1 A

Switching Speed

<50ms

Switch Lifetime

100,000 times

Electrical Specifications at 25˚ C

Parameter

Specification

Unit

Frequency Range

5400-8200

MHz

VSWR (Max)

≤1.1

:1

Insertion Loss

≤0.1

dB

Isolation

≥50dB

dB

Power Handling (Design Guarantee)

5kW (CW)

W
