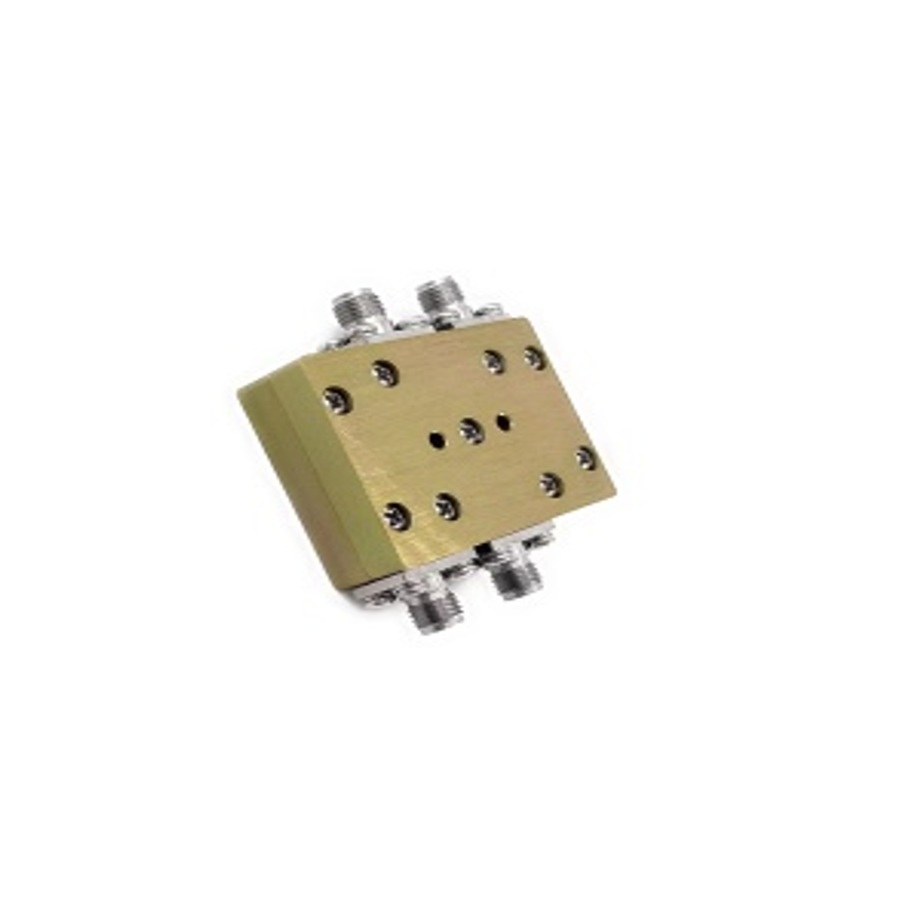

VES-COUP-07285

Hybrid Coupler, 50Ω, 7200 -8500 MHz

Features

- Low Insertion Loss, 0.6 dB max.

- High Isolation, 20 dB min.

- Low VSWR, 1.3:1 typ.

Applications

Wireless communication

Mobile communications

Description

Electrical Specifications at 25˚ C

No.

Parameter

Minimum

Typical

Maximum

Units

1

Frequency range

7.2

-

8.5

GHz

2

Nominal Coupling



3



dB

3

Nominal Degree

-

180



deg

4

Insertion Loss





0.6

db

5

Phase Balance:

-

-

±4

dB

6

Amplitude Balance

-

-

±0.5

dB

7

Isolation

20

-



dB

8

VSWR

-

-

1.3

-

9

Power





20

W cw

10

Operating Temperature Range

-40

-

+85

˚C

11

Impedance

-

50

-

Ω

12

Connecter

SMA-f







13

Preferred finish

Yellow

Environmental Specifications

Operational Temperature

-40°C~+85°C

Storage Temperature

-50°C~+95°C

Vibration

25gRMS (15 degrees 2KHz) endurance, 1 hour per axis

Humidity

100% RH at 35ºc, 95%RH at 40ºc

Shock

20G for 11msec half sine wave,3 axis both directions

Mechanical Specifications

Housing

Aluminum

Connector

Ternary alloy

Female Contact:

gold plated beryllium brass

Rohs

compliant

Weight

0.1kg

Document

No.

Name

Type

1

Datasheet

PDF
