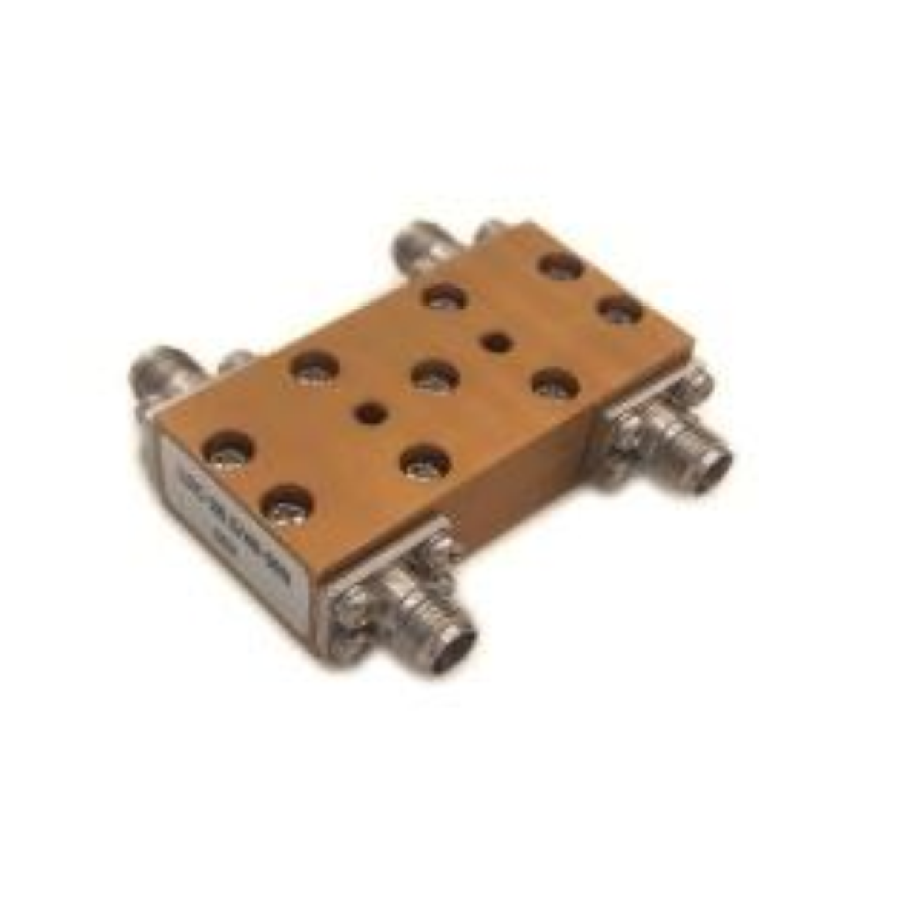

VES-COUPLER-2527

Hybrid Coupler Ka Band 25.5 to 27 GHz

Features

- Frequency Range: 25.5 to 27 GHz

- Low Insertion Loss

- Stable performance over temperature

- All specifications can be modified upon request

Applications

Test Labs

Instrumentations

Sub-assemblies

Description

Specifications

No.

Parameter

Minimum

Typical

Maximum

Units

1

Frequency range

25.5

-

27

GHz

2

Insertion Loss

-

-

1.5

dB

3

Phase Balance

-

-

±10

dB

4

Amplitude Balance

-

-

±0.6

dB

5

Isolation

12

-

 -

dB

6

VSWR

-

-

1.6

-

7

Average Power

 -

 -

1

W

8

Operating Temperature Range

-40

-

+85

˚C

9

Impedance

-

50

-

Ω

10

Connecter

2.92-F

11

Preferred finish

Black/yellow/green/sliver/blue

Plotted and Other Data

Notes:

- Values at +25◦C, sea level.

- ESD Sensitive Material, Transport material in Approved ESD bags.  Handle only in approved ESD Workstation.

Document

No.

Name

Type

1

Datasheet

PDF

Download all files
