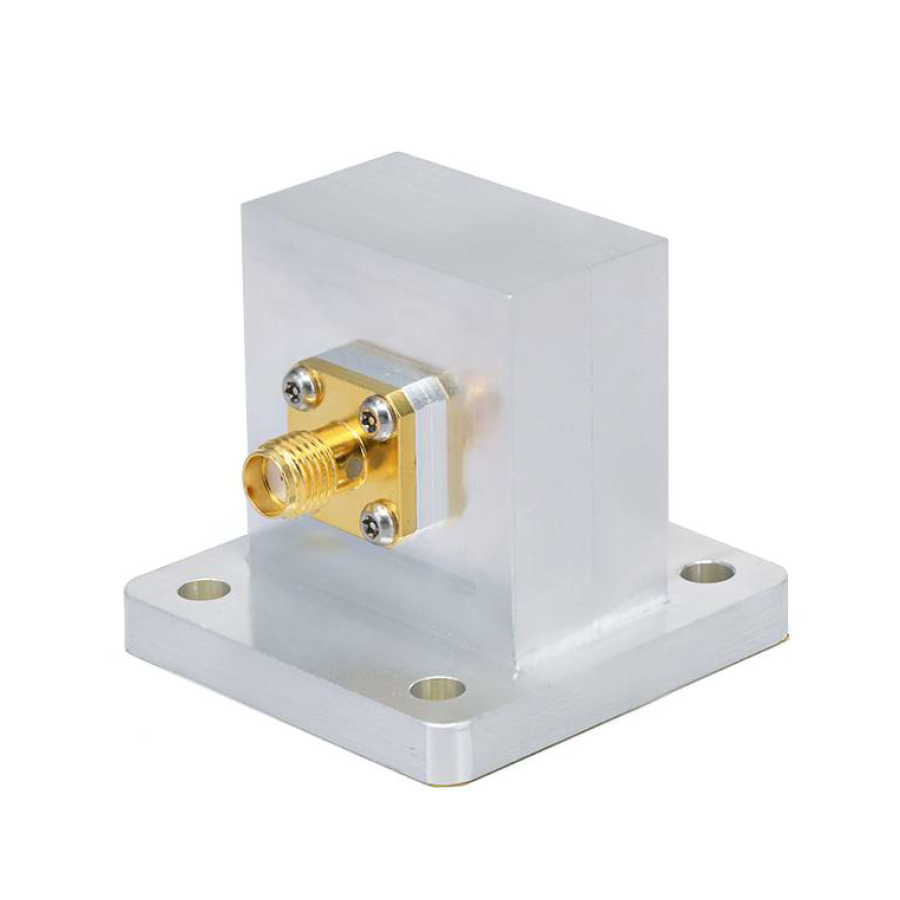

WR75-SMA-UBR120-K-V

WR-75 to SMA Female Right Angle Waveguide to Coax Adapters with UBR120 Flange, 9.84-15GHz

Features

- Body Style: Right Angle

- Flange Designation: UBR120

- Waveguide Size: WR-75

- Connector Series: SMA

- Connector Polarity: Standard

- Connector Gender: Female

- Connector Impedance (Ohm): 50

Description

Product Configuration

Body Style

Right Angle

Flange Designation

UBR120

Waveguide Size

WR-75

Connector Series

SMA

Connector Polarity

Standard

Connector Gender

Female

Connector Impedance (Ohm)

50

Electrical Specifications

VSWR

1.2

Insertion Loss

≤0.25

Frequency Range

9.84-15GHz

Document

No.

Name

Type

1

Datasheet

PDF

Download all files
