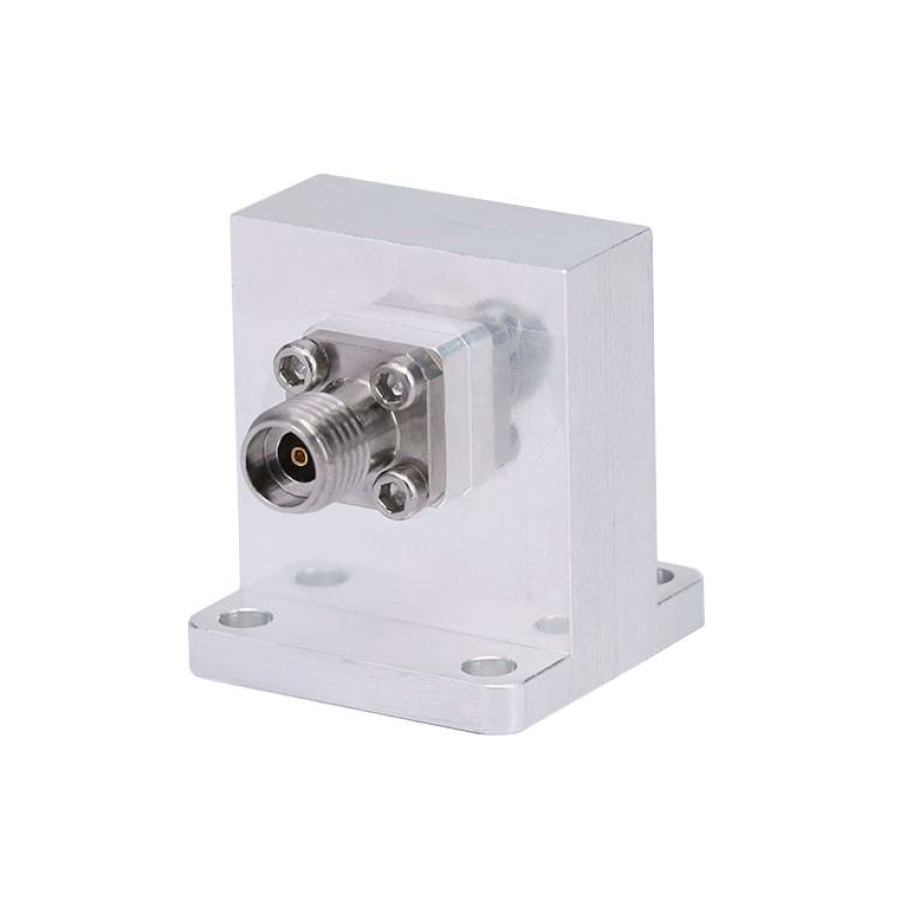

WR42/2.92-UBR220-K-V

WR-42 to 2.92mm Female Right Angle Waveguide to Coax Adapters with UBR220 Flange,18-26.5GHz

Features

- Body Style: Right Angle

- Flange Designation: UBR220

- Waveguide Size: WR-42

- Connector Series: 2.92mm

- Connector Polarity: Standard

- Connector Gender: Female

- Connector Impedance (Ohm): 50

Description

Product Configuration

Body Style

Right Angle

Flange Designation

UBR220

Waveguide Size

WR-42

Connector Series

2.92mm

Connector Polarity

Standard

Connector Gender

Female

Connector Impedance (Ohm)

50

Electrical Specifications

VSWR

1.2

Insertion Loss

≤0.25

Frequency Range

18-26.5GHz

Document

No.

Name

Type

1

Datasheet

PDF

Download all files
