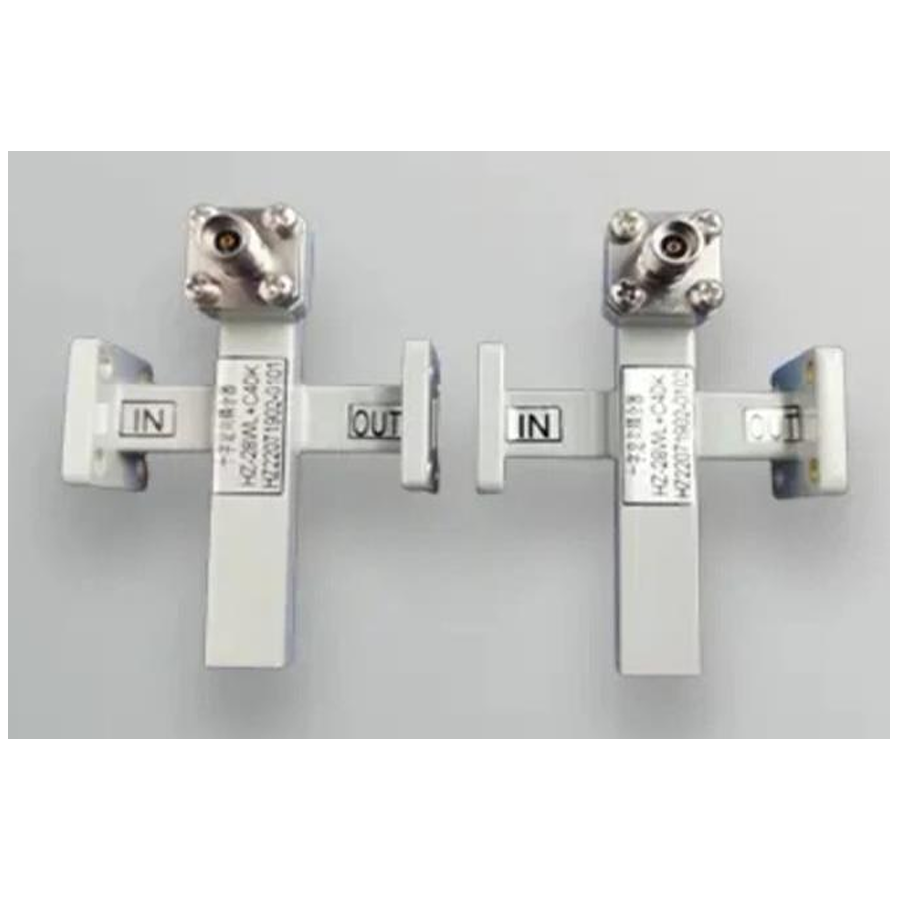

Dual Directional Coupler, WR187, 50Ω, 5450-5650 MHz
Features
- Low Insertion Loss, 0.1 dB typ.
- High Directivity , 20 dB Min.
- Low VSWR, 1.15:1 typ.
- High Efficiency, Versatile Coupling
Wireless communication
Satellite communication
WLan/Wimax
ISM band instrument
Information System for Automotive Safety
Description
Electrical Specifications at 25˚ C
|
Parameter |
Specification |
Unit |
|
Frequency Range |
5450-5650 |
MHz |
|
VSWR (Max) |
1.15 |
:1 |
|
Insertion Loss (Max) |
0.1 |
dB |
|
Coupling |
60±1 dB (Forward and Reverse) |
dB |
|
Directivity (Min) |
20 |
dB |
|
Power Handling (Design Guarantee) |
500 W (CW) 5KW (Peak power) |
W |
Mechanical Specifications
|
Parameter |
Specification |
|
Waveguide Type |
WR187 |
|
Connector Type |
N-K |
|
Material |
Aluminum |
|
Inside finish |
Chromate conversion |
|
Outside finish |
Anticorrosion Grey paint |
|
Operation temperature |
-40 ~ +70 °C |
|
Storage Temperature |
-55℃～+85℃ |
