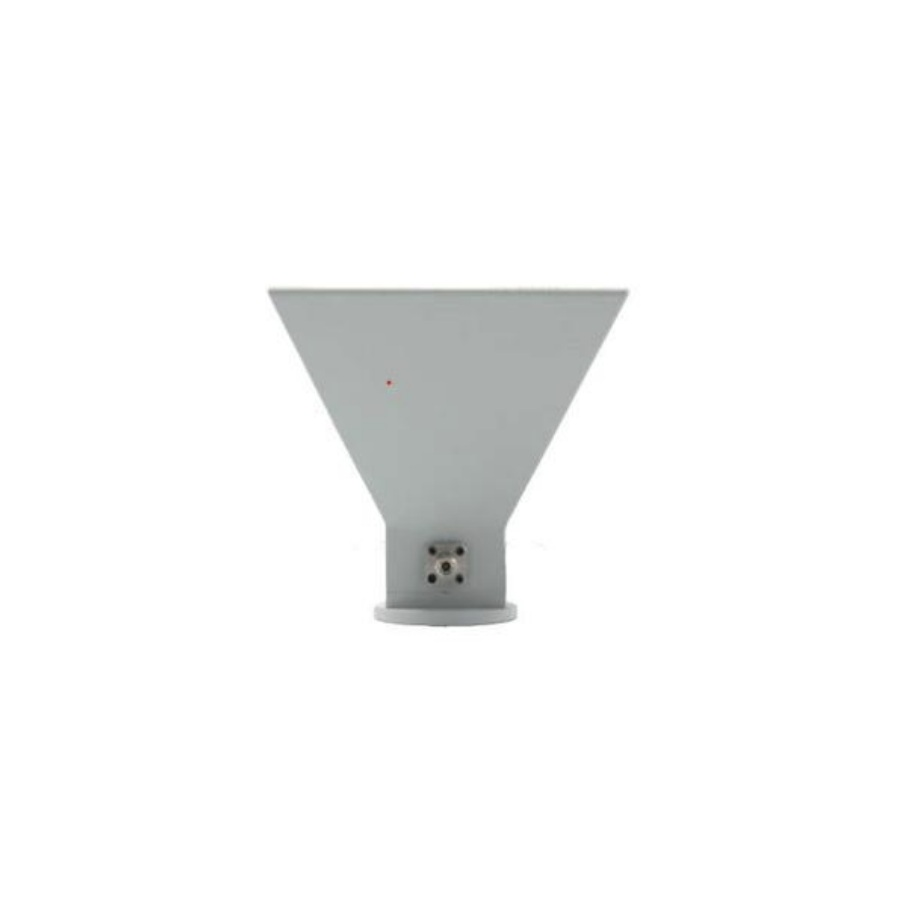

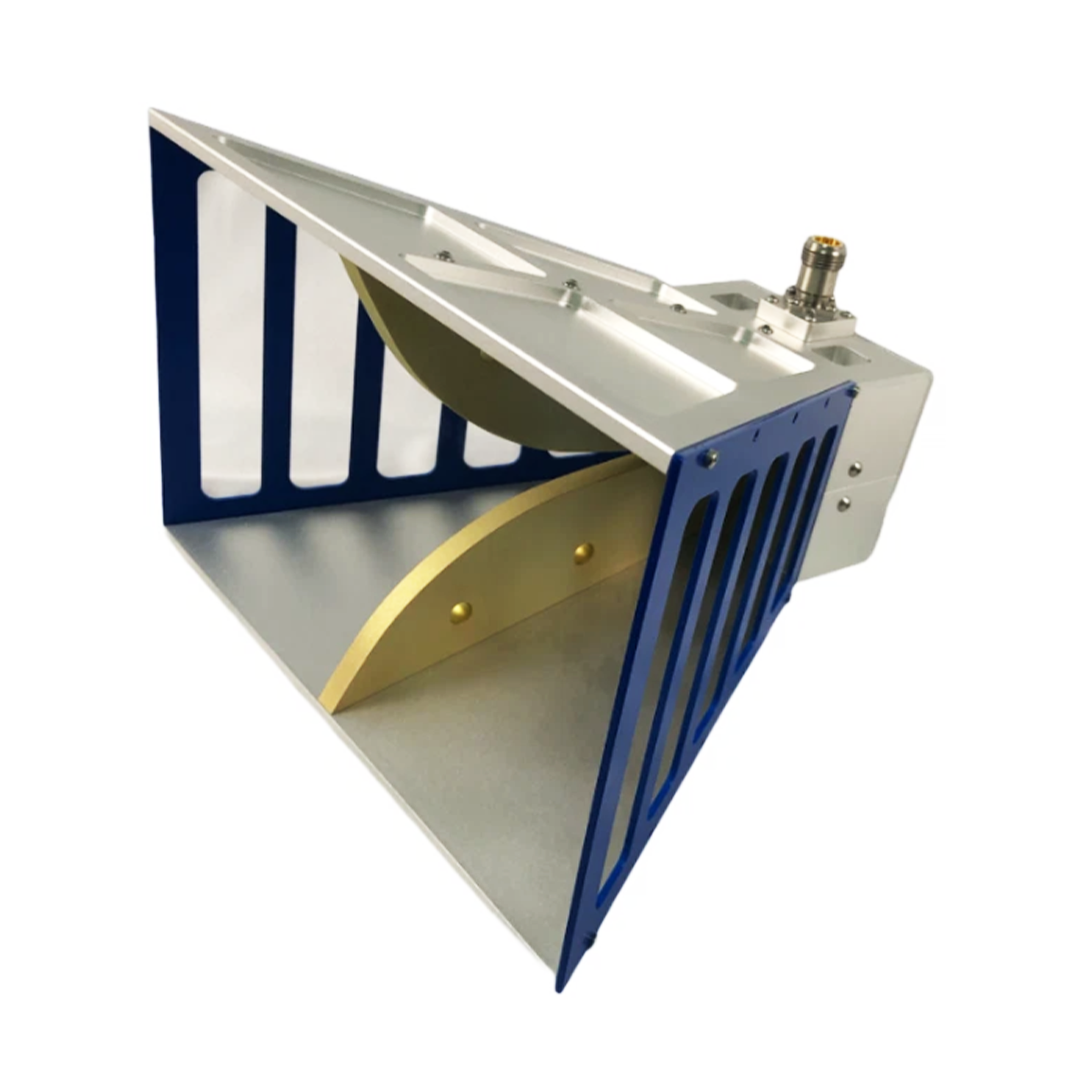

VES-DRHA0560N

Wideband Dual-Ridged Horn Antenna, 50Ω, N-Female, 0.5-6.0 GHz

Features

- Wideband 500 to 6000 MHz

- Low VSWR and High-Precision Design

- Stable and high gain performance

- Low cross polarization

- N Female Connector

- Wind Velocity upto 80 Km/h for operational & 100 Km/h for survival purpose.

Description

Electrical Specifications at 25˚ C

No.

Parameter

Specification-Value

Unit

1.

Frequency Range

500-6000

MHz

2.

VSWR (Avg)

2.5

:1

3.

Gain (Avg)

11

dB

4.

3dB Beamwidth (Avg)

E Plane:50°

 H Plane:45°

°

5

Operating  Temperature

-20°C to +45°C

°C
