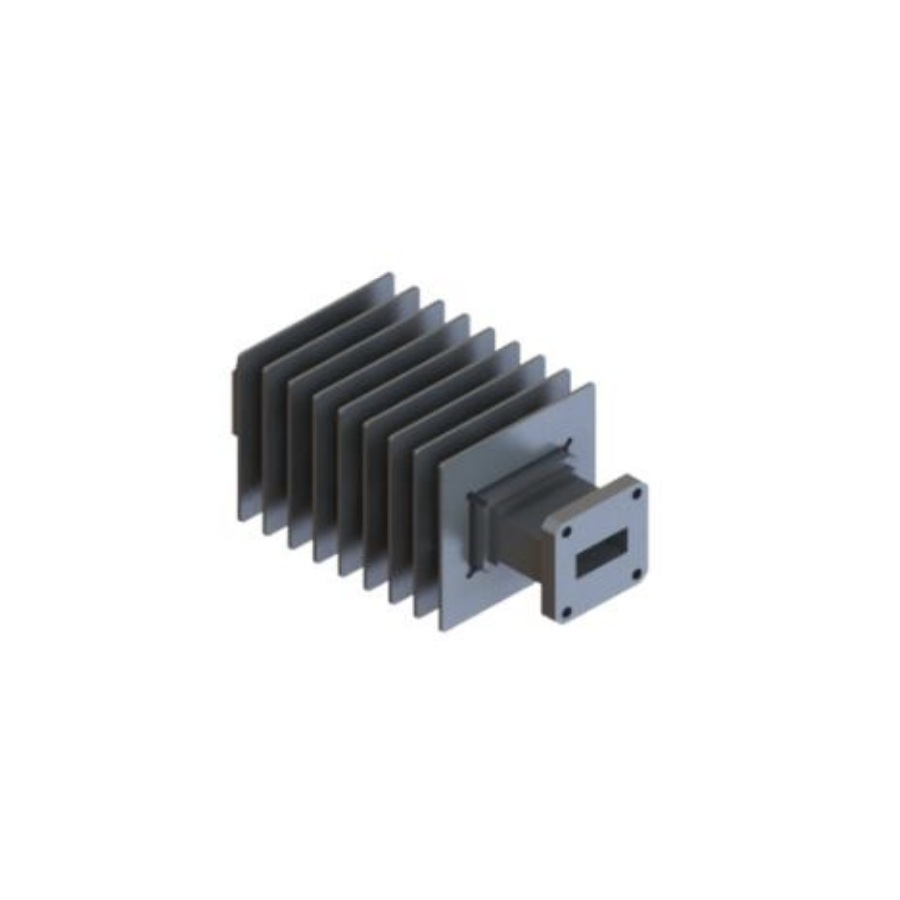

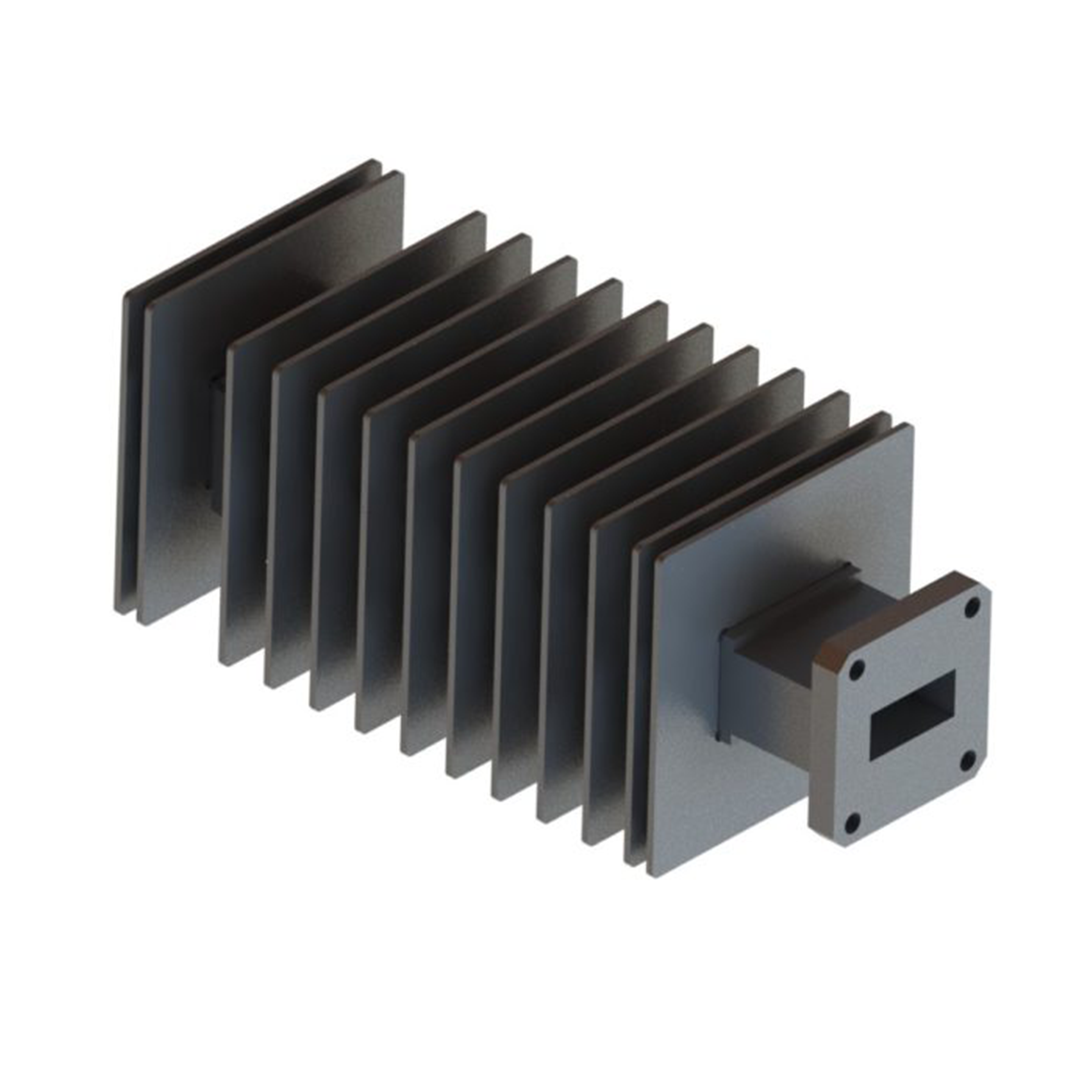

VES-HPL-1015

High Power Load, WR75, 50Ω, 10-15 GHz

Features

- Extremely rugged high power loads

- Excellent Frequency Selectivity

- Low VSWR, 1.2:1 Max.

- Available with most common flanges

- Durability and Reliability

Description

Electrical Specifications at 25˚ C

Parameter

Specification

Unit

Electrical Specifications

Frequency Range

10-15

GHz

VSWR (Max)

1.15

:1

Power Handling (Design Guarantee)

1000 W (CW)

W

Operation temperature

-40℃~ +70 °C

℃

Storage Temperature

-55℃~+85℃

℃

Mechanical Specifications

Parameter

Specification

Waveguide Type

WR75

Flange Type

BJ120

Material

Aluminum

Inside finish

Natural Oxygen-Conducting

Outside finish

Black Paint
