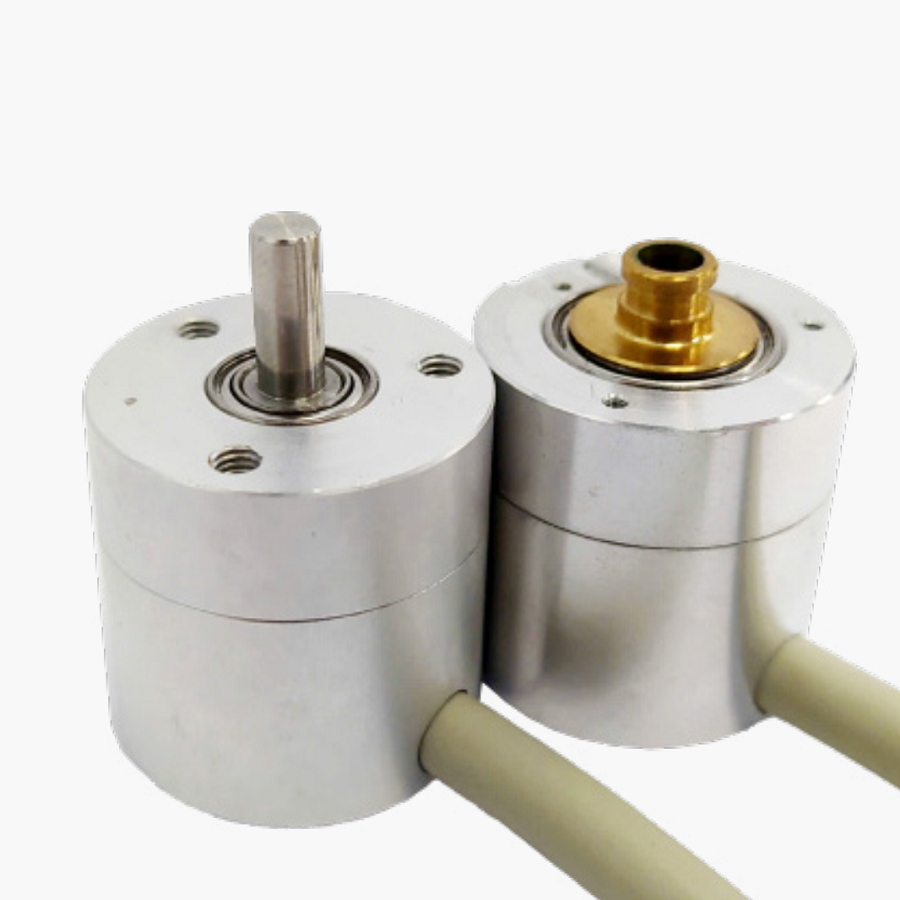

VES-ENABS1206/1210

SHAFT/HOLLOW SHAFT. The absolute singleturn encoders with SSI interface and magnetic sensor technology are the specialists when space is tight.

Features

- Maximum speed: 10000 rpm
- Mass moment of inertia: approx. 0.1 x 10-6 kgm2
- Starting torque: - at 20 °C [68 °F] < 0.01 Nm
- Working temperature range:  -20 °C ... +85 °C


Description

The absolute singleturn encoders with SSI interface and magnetic sensor technology are the specialists when space is tight. Because of their high 12 bitresolution with 4096 different positions for 360° they offer exceptional repeat accuracy.

MINIMAL SPACE REQUIREMENT

- The outer diameter measures 24 mm; the shaft diameter up to max 10 mm.
- Flexible connection with radial or axialcable outlet

DURABLE AND ACCURATE
- Long service life and freedom from wear due to non-contact measuring system.
- Wide temperature range from -20 °C up to +85 °C.
- High 12 bitresolution with 4096 different positions for 360°.
