VES-ENABS-Rxx-Hxx-xxx

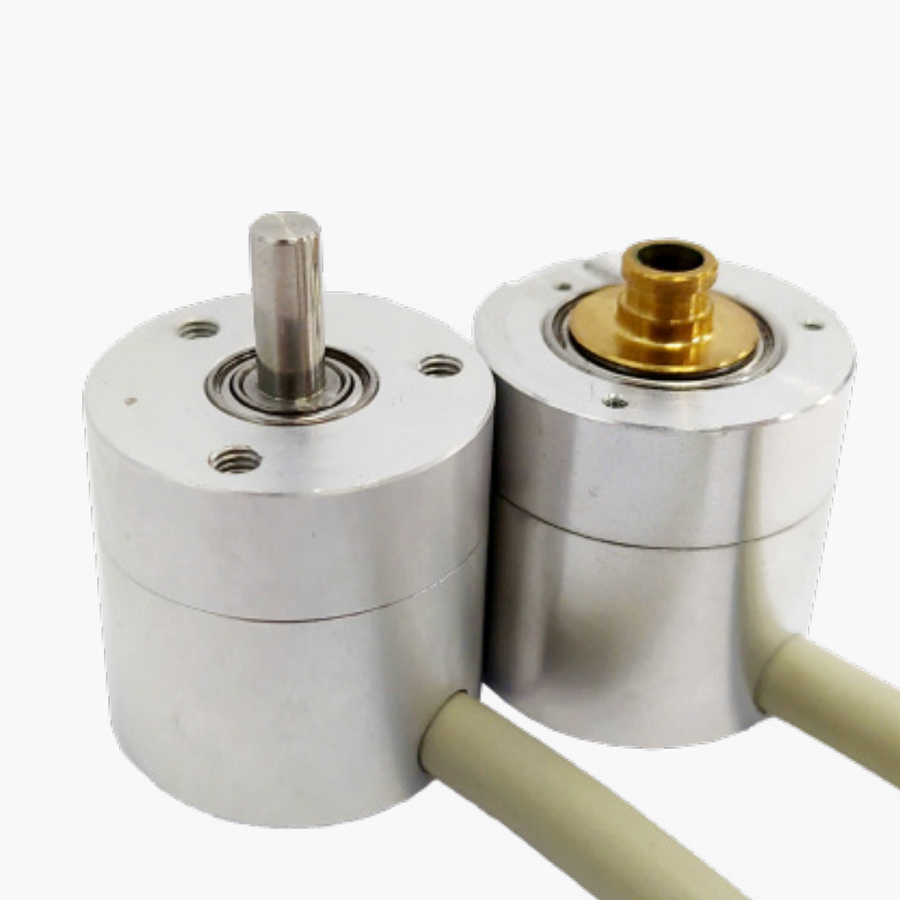

The absolute singleturn encoders with SSI interface and magnetic sensor technology are the specialists when space is tight. Because of their high-resolution measurement over 360° they offer exceptional repeat accuracy.

Features

MINIMAL SPACE REQUIREMENT

• The outer diameter measures 24 mm; the shaft diameter up to max 10 mm.

• Flexible connection cable outlet.

DURABLE AND ACCURATE

• Long service life and freedom from wear due to non-contact measuring system.

• Wide temperature range from -20 °C up to +85 °C.

• High-resolution measurement over 360°.

Description

TECHNICAL DATA

MECHANICAL CHARACTERISTICS

  • Maximum speed 10000 rpm
  • Mass moment of inertia approx. 0.1 x 10-6 kgm2
  • Starting torque - at 20 °C [68 °F] < 0.01 Nm
  • Shaft load capacity radial axial 20 N 10 N
  • Weight approx. 0.03 kg [1.06 oz]
  • Protection housing side flange side IP65 IP50 (IP64 on request)
  • Working temperature range -20 °C ... +85 °C [-4 °F ... +185 °F]
  • Material clamping ring Brass
