VES-ENABS-Rxx-Hxx-xxx

The absolute singleturn encoders with SSI interface and magnetic sensor technology are the specialists when space is tight. Because of their high-resolution measurement over 360° they offer exceptional repeat accuracy.

Features

MINIMAL SPACE REQUIREMENT

• The outer diameter measures 24 mm; the shaft diameter up to max 10 mm.

• Flexible connection cable outlet.

DURABLE AND ACCURATE

• Long service life and freedom from wear due to non-contact measuring system.

• Wide temperature range from -20 °C up to +85 °C.

• High-resolution measurement over 360°.

Description

The VES-ENABS series absolute encoder is designed for industrial applications requiring precise angular position feedback in limited installation spaces. With a compact 24 mm housing and magnetic sensing technology, the encoder offers reliable non-contact measurement and long operational life.

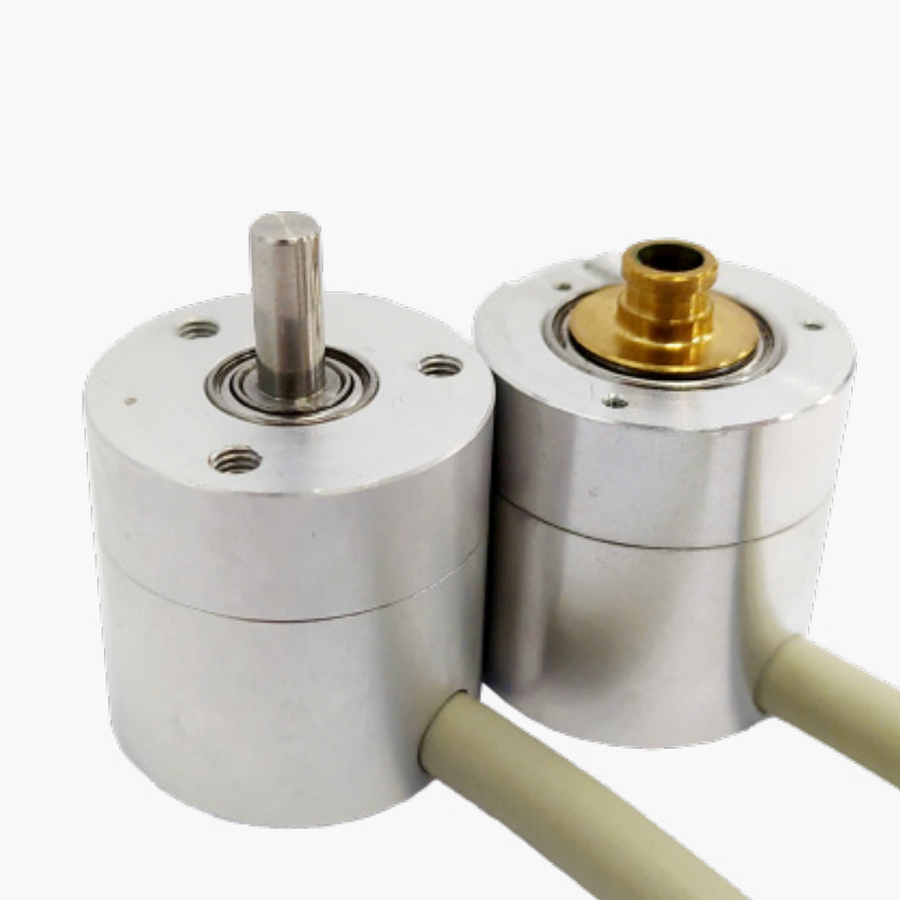

The encoder supports SSI communication with RS422 output and provides resolution options up to 18-bit for high-accuracy motion control systems. Both hollow shaft and solid shaft configurations are available to simplify mechanical integration.

Typical applications include robotics, servo motors, packaging machines, AGV systems, and compact automation equipment.
