VES-COUPLER-26

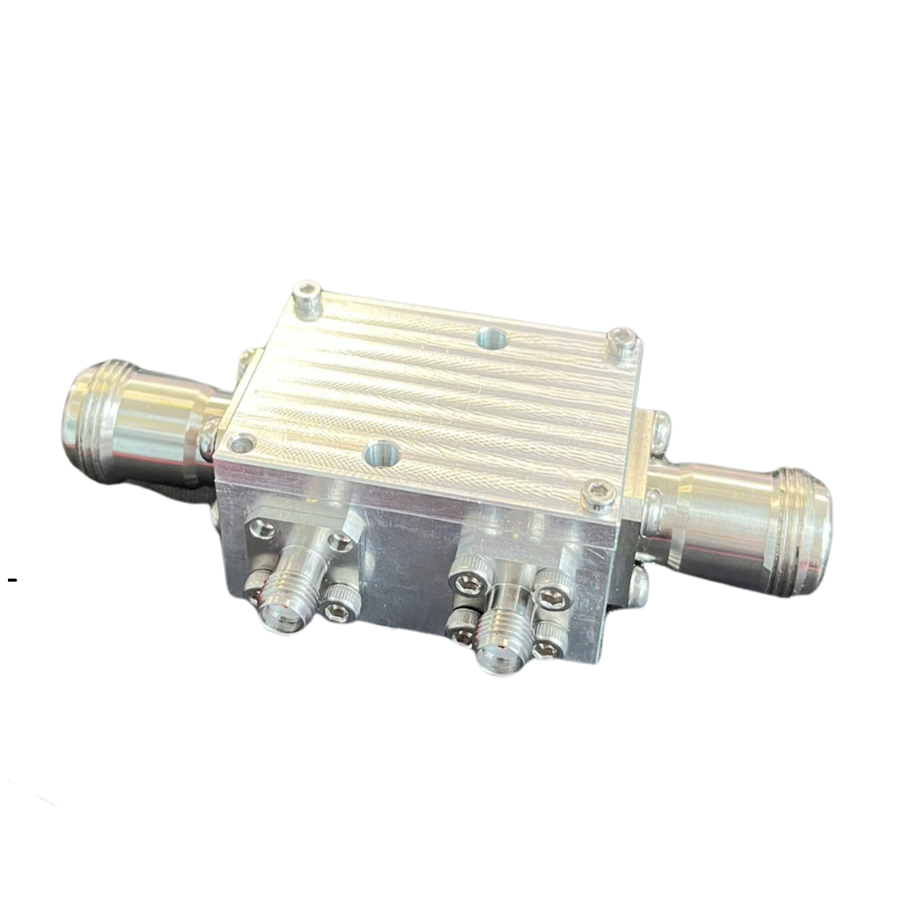

Dual Directional Coupler, 0.7dB Flatness, 2000-6000 MHz

Features

- Dual Directional 20dB N Coupler from 2 GHz to 6GHz Rated to 200 Watts

Applications

Laboratory Applications

Radar Systems

Military & Space

Satellite Comminications

Description

Electrical Specifications

Parameter

Min

Typ

Max

Unit

Frequency Range

2

-

6

GHz

Directivity

15

-

-

dB

Impedance

-

50

-

Ohms

Insertion Loss

-

-

0.38

dB

Input VSWR

-

-

1.3

:1

Coupling Value

-

20

-

dB

Coupling Tolerance

-

-

± 1

dB

Coupling Flatness

-

-

± 0.7

dB

Mechanical Specifications

Parameter

Rating

Length x Width

43.18 x 23.11 mm

Height

29.97 mm

Operating Temperature

-30 to 80 ◦C

Material

Aluminum



Document

No.

Name

Type

1

Datasheet

PDF
