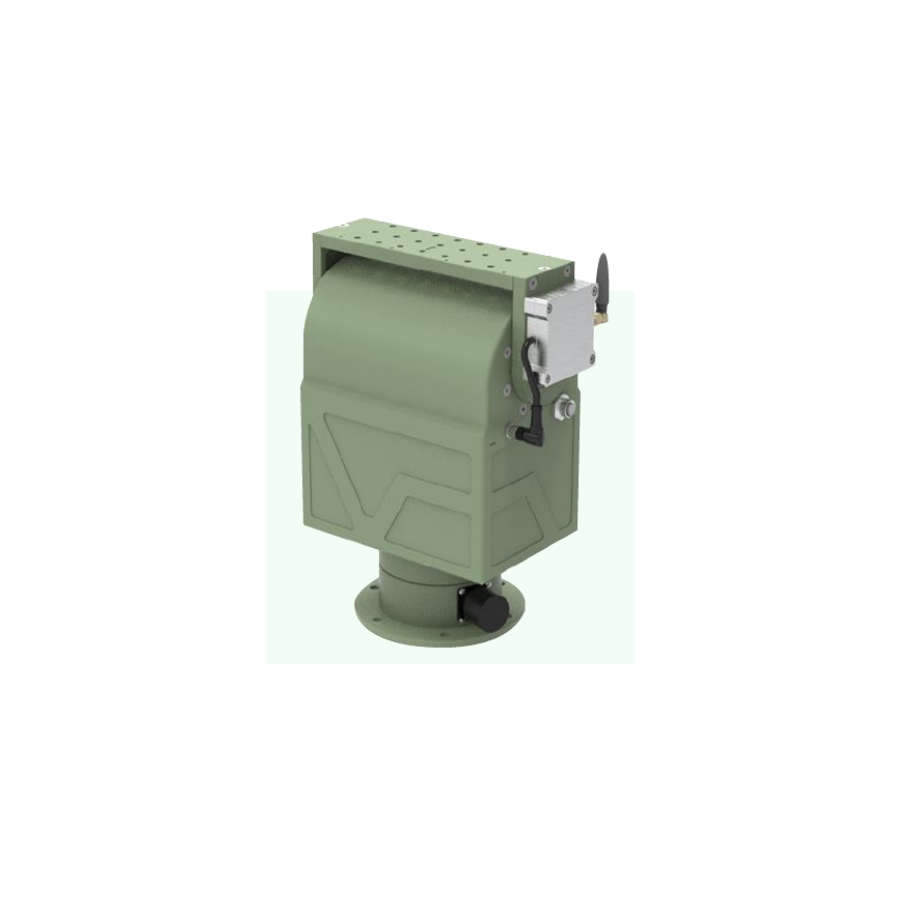

VES-ALS-360
Features
- 2-axis movement ( Azimuth and Altitude)
- High speed (15 rpm Max)
- Angle output resolution 0.01°
- Low backlash ≤ 0.07°
- Lock when power failure
- Ethernet / RS-485/ CAN interface
- Pan axis moves 360 degree continuously
- Light weight body below
- Electromangnetic Brake: Save and lock positions when power down (both Pan and Tilt)
- Offline Maps/ GPS/ Compass with geomagnetic maps
Description
|
Specifications for VES-ALS-360 |
|
|
Pan angle range |
360° Continuously |
|
Tilt angle range |
160° ( -80° ─ 80°). 0° position is Home position and Tilt’ Jig is horizontal. |
|
Pan max speed |
75°/s - may be customized |
|
Tilt max speed |
60°/s - may be customized |
|
Position resolution |
0.01° (both Pan and Tilt) |
|
Position accuracy |
0.15° (both Pan and Tilt) |
|
Backlash |
0.07° (both Pan and Tilt) |
|
Rate Moment |
45 N.m (both Pan and Tilt) |
|
Pick Moment |
60 N.m (both Pan and Tilt) |
|
Lock moment |
75 N.m (both Pan and Tilt when positioning completed) |
|
Load capacity |
Top mount up to 30 kg |
|
Voltage Supply |
24 - 36 VDC (recommen 36V for high power) |
|
Power consumption |
Max load 200W (100W per one axis) |
|
Interface |
Ethernet/ RS-485/ Can |
|
Ethernet Switch |
2 port Giga: 1 port for control, 1 port for other device |
|
Software control |
Web Service/ Als control (only Windows) |
|
Protocol |
Provide API control |
|
Slipring |
Giga Ethernet/ RS485/Can Power: current rating 10A |
|
Material |
Aluminum |
|
Size |
H265 x D191 x W120 mm (± 5%) |
|
Weight |
8±0.5 kg (Not include pole mount and accessory) |
|
Operating temperature |
-10°C - 60°C |
|
IP rating |
IP66 (IP67 option) |
|
Humidity |
Up to 98% |
|
Support |
Salt fog (MIL STD 810G Method 509) Vibration: Vibration amplitude 1.19mm, frequency from 15Hz to 50 Hz in 30 minutes. Shock: Acceleration 20g, frequency 60 to 80 times/min, impact 18 times. |
